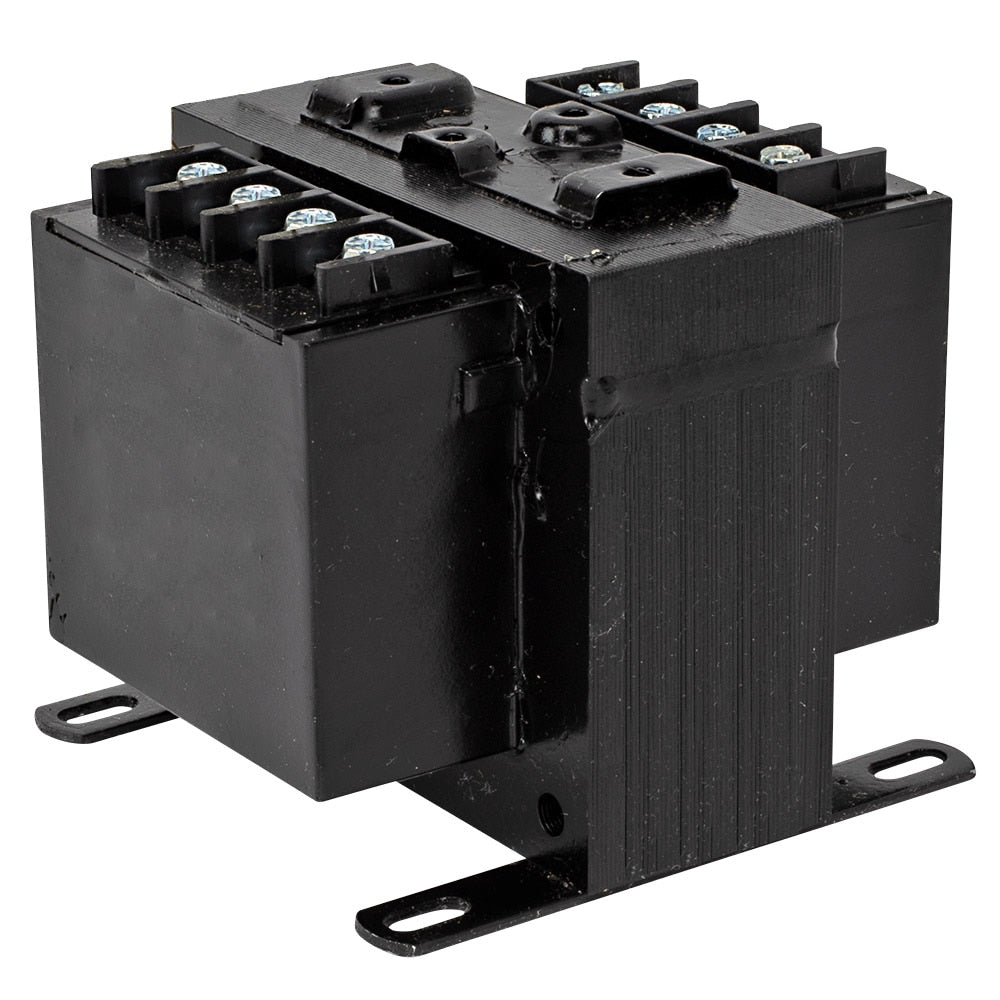

Micron B150-2104-GAF — 150VA GlobalTRAN Control Transformer
The Micron B150-2104-GAF is a 150VA GlobalTRAN epoxy-encapsulated control transformer. Primary: 208/230/460V. Secondary: 24/115V. Single-phase, 50/60Hz. Features Micron's legendary epoxy encapsulation for superior moisture and contaminant resistance. UL/cUL Listed. Backed by Micron's industry-leading 20-year warranty. Made in the USA.
📋 B150-2104-GAF Specifications
| Part Number | B150-2104-GAF |
| Manufacturer | Micron Industries Corporation |
| Series | GlobalTRAN |
| VA Rating | 150VA |
| Full Load Amps | 6.25/1.30A |
| Primary Voltage | 208/230/460V |
| Secondary Voltage | 24/115V |
| Voltage Group | GlobalTRAN |
| Phase / Freq | Single Phase, 50/60Hz |
| Construction | Epoxy Encapsulated |
| Approx. Weight | 9.5 lbs |
| Certifications | UL/cUL Listed (File #E46323) |
| Warranty | 20-Year Manufacturer Warranty |
📄 Documentation & Downloads
🔄 Cross-Reference & Alternatives
The B150-2104-GAF replaces comparable 150VA control transformers with 208/230/460V primary and 24/115V secondary from Hammond Power Solutions, Sola, Acme, Jefferson, Eaton, Square D, Schneider Electric, Siemens, Allen-Bradley. Contact us for an exact cross-reference.
❓ FAQ
What does the B150-2104-GAF replace?
Any 150VA control transformer with 208/230/460V primary/24/115V secondary from Hammond (HPS), Sola, Acme, Jefferson, Eaton, Square D/Schneider, Siemens, or Allen-Bradley.
Why choose Micron over Hammond or Acme?
Micron's epoxy encapsulation provides superior environmental protection vs. standard varnish-dipped transformers, plus a 20-year warranty — the longest in the industry.
