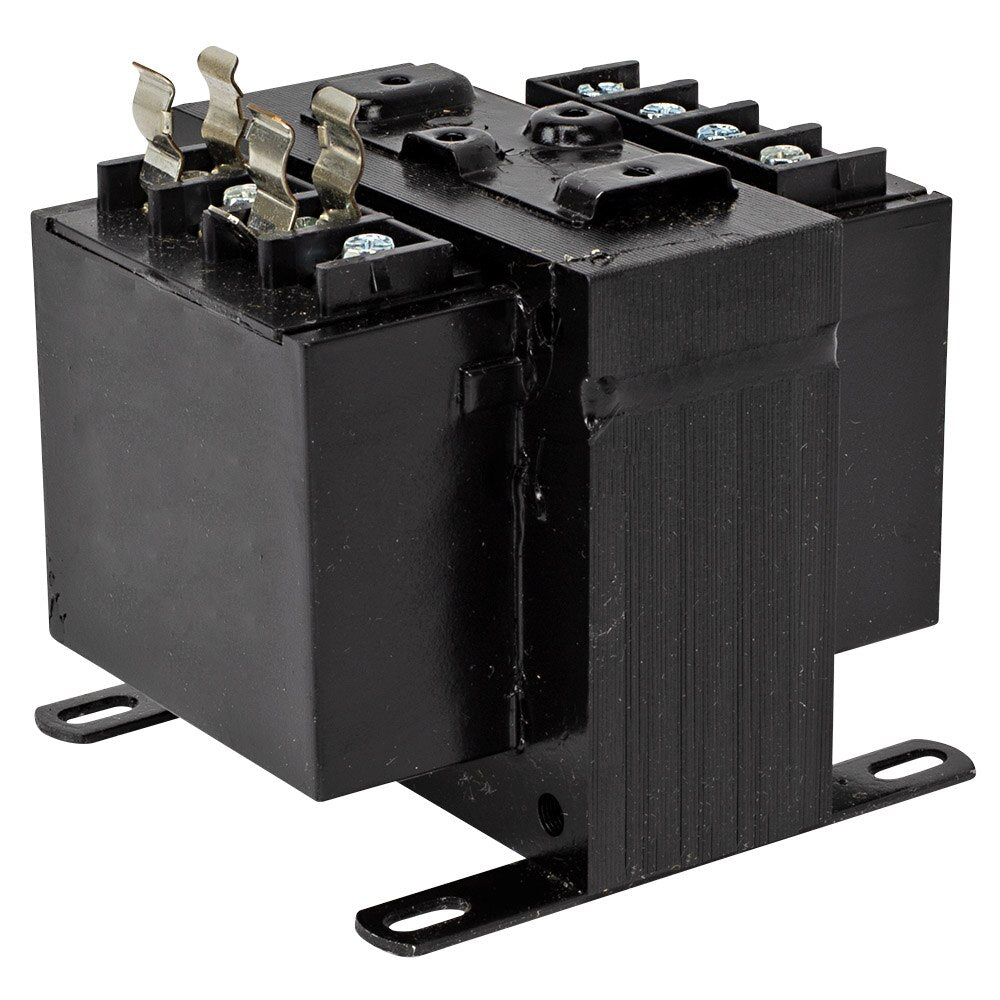

Micron B250BTW37XXF — 250VA ImperviTRAN Control Transformer
The Micron B250BTW37XXF is a 250VA ImperviTRAN epoxy-encapsulated control transformer. Primary: 230/460/575V. Secondary: 95/115V. Single-phase, 50/60Hz. Features Micron's legendary epoxy encapsulation for superior moisture and contaminant resistance. UL/cUL Listed. Backed by Micron's industry-leading 20-year warranty. Made in the USA.
📋 B250BTW37XXF Specifications
| Part Number | B250BTW37XXF |
| Manufacturer | Micron Industries Corporation |
| Series | ImperviTRAN |
| VA Rating | 250VA |
| Full Load Amps | 2.63/2.17A |
| Primary Voltage | 230/460/575V |
| Secondary Voltage | 95/115V |
| Voltage Group | Group H |
| Phase / Freq | Single Phase, 50/60Hz |
| Construction | Epoxy Encapsulated |
| Approx. Weight | 9.5 lbs |
| Certifications | UL/cUL Listed (File #E46323) |
| Warranty | 20-Year Manufacturer Warranty |
📄 Documentation & Downloads
🔄 Cross-Reference & Alternatives
The B250BTW37XXF replaces comparable 250VA control transformers with 230/460/575V primary and 95/115V secondary from Hammond Power Solutions, Sola, Acme, Jefferson, Eaton, Square D, Schneider Electric, Siemens, Allen-Bradley. Contact us for an exact cross-reference.
❓ FAQ
What does the B250BTW37XXF replace?
Any 250VA control transformer with 230/460/575V primary/95/115V secondary from Hammond (HPS), Sola, Acme, Jefferson, Eaton, Square D/Schneider, Siemens, or Allen-Bradley.
Why choose Micron over Hammond or Acme?
Micron's epoxy encapsulation provides superior environmental protection vs. standard varnish-dipped transformers, plus a 20-year warranty — the longest in the industry.
