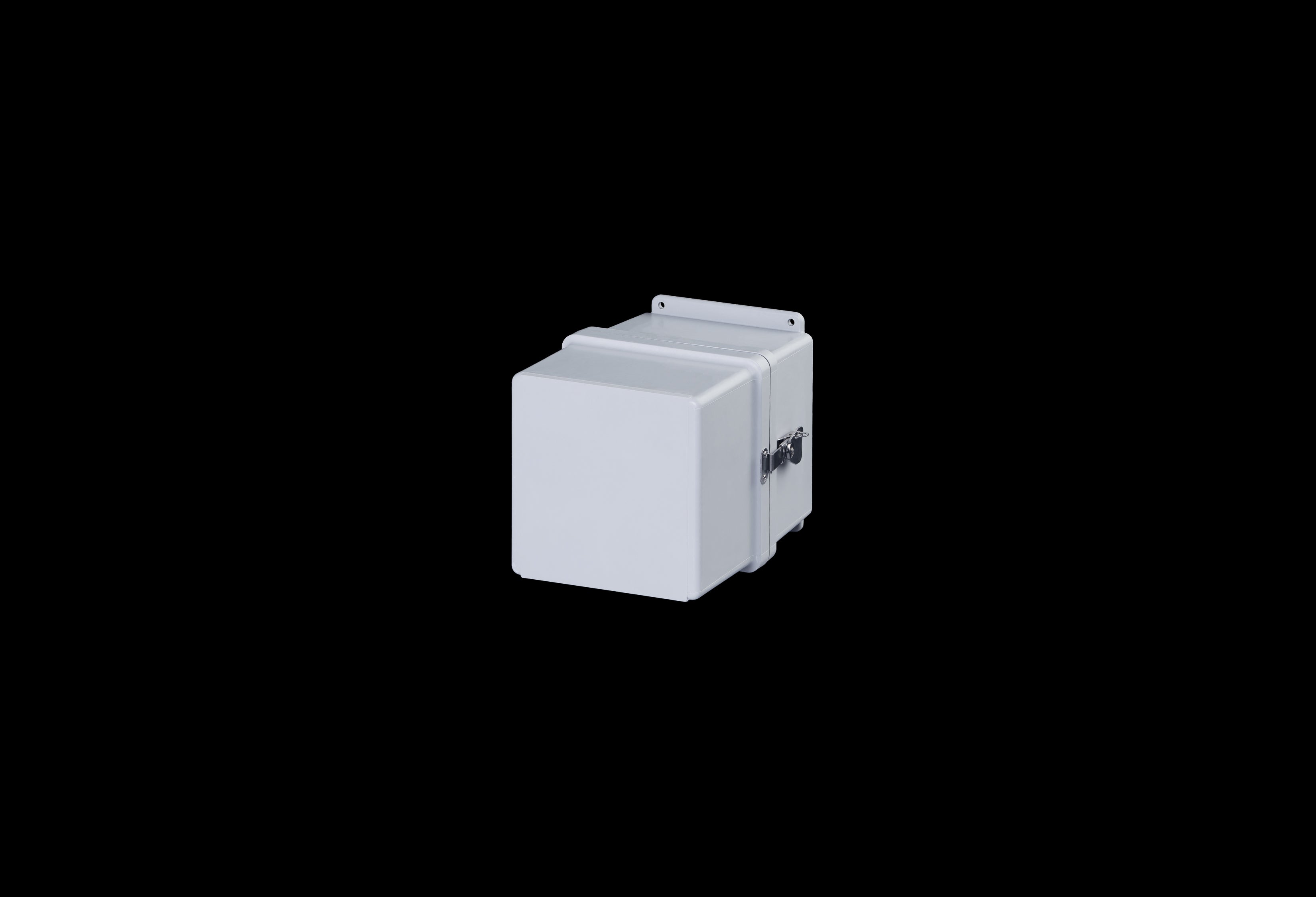

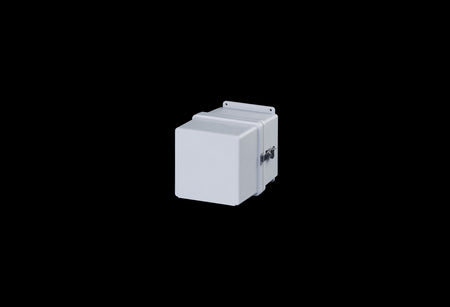

J8088SSH | Stahlin 7.73x7.73x9.18" SSH FatBoy Series Fiberglass Enclosure – NEMA 4X – Extra Deep Opaque Cover
Couldn't load pickup availability
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
Product Overview
SSH FatBoy Series extra-deep fiberglass enclosures accommodate oversized DIN rail assemblies, deep control components, and cable management systems where standard enclosure depth falls short — same SolarGuard® NEMA 4X construction as J Series.
The J8088SSH is a SSH FatBoy Series Fiberglass enclosure with a Extra Deep Opaque Cover configuration, rated NEMA 1, 3R, 4, 4X, 6P, 12 / IP66, cULus Listed File #E64358, and CSA Certified. Manufactured in the USA using Stahlin's SolarGuard® proprietary formulation for superior chemical resistance, UV durability, and flame retardancy.
A proven non-metallic alternative to NEMA 4X enclosures from Allied Moulded, Hoffman, Hammond, Saginaw, Wiegmann, Hubbell, Fibox, Integra, and AttaBox.
Key Features
- NEMA 1, 3R, 4, 4X, 6P, 12 rated — IP66 per IEC 60529
- cULus Listed (File #E64358) — UL 50, UL 50e, UL 508A
- CSA Certified C22.2
- SolarGuard® non-halogenated Fiberglass — UL 94-5VA flammability rating
- Continuous poured-in-place polyurethane seamless gasket
- 304 stainless steel hinge and hardware throughout
- Molded-in brass inserts for superior pull-out strength
- Temperature range: -76°F to +274°F
- Back panels: aluminum, carbon steel, SS, fiberglass, or ABS
- ModRight® custom modification program compatible
- Made in USA
Specifications
| Catalog Number | J8088SSH |
| Series | SSH FatBoy Series |
| Material | Fiberglass |
| Interior Dimensions | 7.73 x 7.73 x 9.18 in (interior) |
| Cover Type | Extra Deep Opaque Cover |
| Color | RAL 7035 Light Gray |
| NEMA Types | 1, 3R, 4, 4X, 6P, 12 |
| IEC Rating | IP66 |
| UL Standards | UL 50, UL 50e, UL 508A |
| cULus Listed File | E64358 |
| CSA Standard | C22.2 |
| Temperature Range | -76°F to +274°F |
| Flammability | UL 94-5VA |
| Flame Spread | NFPA 101 Class A |
| UV Outdoor Rating | UL 746C (f1) Rated |
| Gasket | Poured-In-Place Polyurethane, Seamless |
| Country of Origin | USA |
| Availability | Usually Stocked — ships within 5 days |
| List Price | $392.88 |
Applications
Competitor Cross-Reference
The Stahlin J8088SSH replaces comparable NEMA 4X enclosures from Allied Moulded, Hoffman, Hammond, Saginaw, Wiegmann, Hubbell, Fibox, Integra, and AttaBox. Non-metallic construction eliminates rust, eliminates painting, reduces weight, and delivers superior chemical resistance — often at a lower total installed cost.
| Manufacturer | Comparable Series | Stahlin Advantage |
|---|---|---|
| Hoffman (nVent) | A-Series / N4X Steel | Non-metallic: zero corrosion, no painting, lighter weight |
| Hammond Mfg | 1414 / 1481 Steel N4X | SolarGuard® fiberglass for superior outdoor UV resistance |
| Saginaw Control | SCE Steel Series | USA-made fiberglass vs. imported steel alternatives |
| Wiegmann (Hubbell) | WC / N Series Steel | Full 304 SS hardware; poured PU seamless gasket |
| Fibox | CAB / MNX Polycarbonate | SolarGuard® for high-temp and heavy UV applications |
| Integra | Polycarbonate Series | cULus + CSA dual-listed; broader back panel options |
| AttaBox | Centurion Series | Extended temp -76°F; integral flange — no assembly |
| Hubbell Wiring | NEMA 4X Polyester | UL 746C f1 outdoor rated + ModRight custom mod program |
| Allied Moulded | Series 400 Fiberglass | cULus + CSA dual-listed; SolarGuard® UV rating; Made in USA |
CAD Drawing Downloads
Download certified CAD drawings for J8088SSH:
Frequently Asked Questions
What NEMA ratings does the J8088SSH carry?
The J8088SSH is rated NEMA 1, 3R, 4, 4X, 6P, 12, protecting against dust, oil, coolants, rain, sleet, hose-directed water, and submersion. Also rated IP66 per IEC 60529.
Is this enclosure cULus Listed?
Yes. The J8088SSH is cULus Listed under File #E64358 per UL 50, UL 50e, and UL 508A, and CSA Certified to C22.2.
What back panel options are available?
Back panels are available in aluminum (AL), painted carbon steel (CS), stainless steel (SS), fiberglass (FG), and ABS. Add the suffix to your order. Contact ACI Automation for sizing and compatibility guidance.
Can I modify or customize this enclosure?
Yes. Stahlin's ModRight® program supports custom cutouts, windows, printing, laser engraving, mold-in colors, DIN rail kits, EMI/RFI shielding, and custom mounting. Submit your request through ACI Automation.
How do I get pricing?
ACI Automation is an authorized Stahlin distributor. List price is shown above. Request a quote for distribution pricing and lead times.
What is the lead time?
Availability code B: Usually Stocked — ships within 5 days. Contact ACI Automation to confirm current stock.
What is the temperature rating?
The J8088SSH is rated -76°F to +274°F — suitable for cold storage, outdoor industrial, and elevated-temperature applications.
