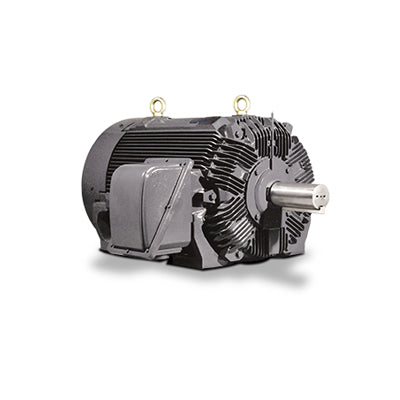

Teco Westinghouse CDP2506RZ Industrial Motor
The Teco Westinghouse CDP2506RZ is a 250 HP, MAX-HT High Torque Crusher Duty Design A, 1200 RPM three-phase induction motor. Purpose-built for crusher and high-torque applications, this Design C motor delivers reliable performance in continuous-duty applications across a wide range of operating conditions.
Built for high-inertia crusher loads, this Design C motor features high starting torque, cast iron construction, oversized bearings, and Class F insulation rated for frequent starts.
Key Specifications
| Part Number | CDP2506RZ |
| Manufacturer | Teco Westinghouse |
| Horsepower | 250 HP |
| Speed | 1200 RPM |
| Full Load Amps | 305 A |
| Shipping Weight | 4850 lbs |
Cross-Reference: Replacing a Baldor, WEG, Siemens, Marathon, Leeson, or ABB motor with matching HP, speed, and frame? Send us your existing part number and we'll verify the Teco Westinghouse CDP2506RZ is a drop-in replacement.
Applied Control Inc. is an authorized Teco Westinghouse representative in Michigan offering application engineering support, competitive pricing, and fast delivery on the CDP2506RZ and the full Teco Westinghouse motor lineup. Contact us for volume pricing, scheduled deliveries, or help selecting the right motor for your application.
📄 Documentation & Resources
⤓ Teco Westinghouse Product Resources & Catalogs
❓ Frequently Asked Questions
What does the Teco CDP2506RZ replace?
The CDP2506RZ is a drop-in replacement for comparable 250 HP motors from Baldor, WEG, US Motors, Worldwide Electric, GE Wolong, Marathon, Leeson. Send us your existing part number for an exact cross-reference.
Is the CDP2506RZ NEMA Premium Efficient?
Yes — Teco Westinghouse motors meet or exceed NEMA Premium efficiency standards, reducing energy costs over the motor's lifetime.
What is the lead time on the CDP2506RZ?
Many Teco Westinghouse motors are stocked for quick shipment. Contact Applied Control for current availability and lead times.
What warranty does the CDP2506RZ carry?
Teco Westinghouse motors carry a standard manufacturer warranty. Contact us for specific warranty terms on this model.
