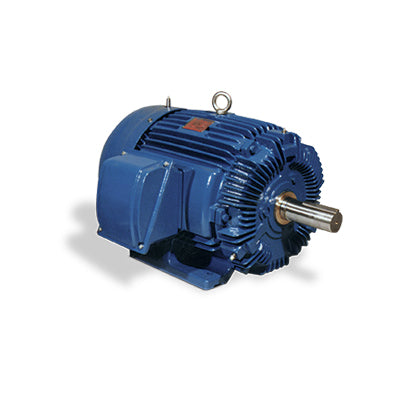

Teco Westinghouse HH2504 — MAX-E2/841 Lite Industrial Motor
The Teco Westinghouse HH2504 (MAX-E2/841 Lite series) is a 250 HP, MAX E2 "841 Lite" Severe Duty IEEE841 Ready TEFC, 1800 RPM three-phase induction motor. Designed to meet or exceed IEEE 841 standards for severe-duty petrochemical and process applications, this motor delivers reliable performance in continuous-duty applications across a wide range of operating conditions.
Features include oversized bearings with L10 life exceeding 100,000 hours, corrosion-resistant coating, non-sparking fan, stainless steel hardware, and Class F insulation system for chemical and process environments.
Key Specifications
| Part Number | HH2504 |
| Manufacturer | Teco Westinghouse |
| Product Line | MAX-E2/841 Lite |
| Horsepower | 250 HP |
| Speed | 1800 RPM |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Full Load Amps | 285 A |
| Shipping Weight | 2710 lbs |
Cross-Reference: Replacing a Baldor, WEG, Siemens, Marathon, Leeson, or ABB motor with matching HP, speed, and frame? Send us your existing part number and we'll verify the Teco Westinghouse HH2504 is a drop-in replacement.
Applied Control Inc. is an authorized Teco Westinghouse representative in Michigan offering application engineering support, competitive pricing, and fast delivery on the HH2504 and the full Teco Westinghouse motor lineup. Contact us for volume pricing, scheduled deliveries, or help selecting the right motor for your application.
📄 Documentation & Resources
⤓ Teco Westinghouse Product Resources & Catalogs
❓ Frequently Asked Questions
What does the Teco HH2504 replace?
The HH2504 is a drop-in replacement for comparable 250 HP TEFC motors from Baldor, WEG, US Motors, Worldwide Electric, GE Wolong, Marathon, Leeson. Send us your existing part number for an exact cross-reference.
Is the HH2504 NEMA Premium Efficient?
Yes — Teco Westinghouse MAX-E2/841 Lite motors meet or exceed NEMA Premium efficiency standards, reducing energy costs over the motor's lifetime.
What is the lead time on the HH2504?
Many Teco Westinghouse motors are stocked for quick shipment. Contact Applied Control for current availability and lead times.
What warranty does the HH2504 carry?
Teco Westinghouse motors carry a standard manufacturer warranty. Contact us for specific warranty terms on this model.
