P2506R | Teco Westinghouse 250 HP WPI Motor — 1200 RPM
Couldn't load pickup availability
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

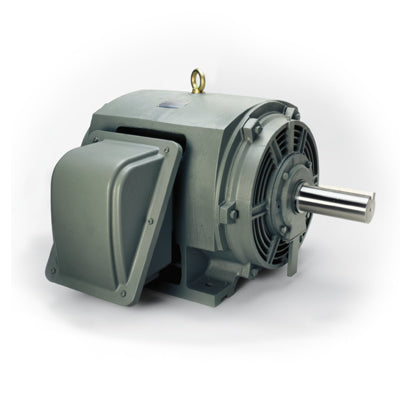

Teco Westinghouse P2506R Industrial Motor
The Teco Westinghouse P2506R is a 250 HP, Medium Voltage WPI, 1200 RPM three-phase induction motor. Engineered for medium-voltage industrial applications, this motor delivers reliable performance in continuous-duty applications across a wide range of operating conditions.
Engineered for medium-voltage service, this motor features form-wound coils, Class F insulation with VPI treatment, anti-condensation heaters, and RTDs for winding and bearing temperature monitoring.
Key Specifications
| Part Number | P2506R |
| Manufacturer | Teco Westinghouse |
| Horsepower | 250 HP |
| Speed | 1200 RPM |
| Enclosure | WPI (Weather Protected Type I) |
| Full Load Amps | 34.6725 A |
| Shipping Weight | 3362 lbs |
Cross-Reference: Replacing a Baldor, WEG, Siemens, Marathon, Leeson, or ABB motor with matching HP, speed, and frame? Send us your existing part number and we'll verify the Teco Westinghouse P2506R is a drop-in replacement.
Applied Control Inc. is an authorized Teco Westinghouse representative in Michigan offering application engineering support, competitive pricing, and fast delivery on the P2506R and the full Teco Westinghouse motor lineup. Contact us for volume pricing, scheduled deliveries, or help selecting the right motor for your application.
📄 Documentation & Resources
⤓ Teco Westinghouse Product Resources & Catalogs
❓ Frequently Asked Questions
What does the Teco P2506R replace?
The P2506R is a drop-in replacement for comparable 250 HP WPI motors from Baldor, WEG, US Motors, Worldwide Electric, GE Wolong, Marathon, Leeson. Send us your existing part number for an exact cross-reference.
Is the P2506R NEMA Premium Efficient?
Yes — Teco Westinghouse motors meet or exceed NEMA Premium efficiency standards, reducing energy costs over the motor's lifetime.
What is the lead time on the P2506R?
Many Teco Westinghouse motors are stocked for quick shipment. Contact Applied Control for current availability and lead times.
What warranty does the P2506R carry?
Teco Westinghouse motors carry a standard manufacturer warranty. Contact us for specific warranty terms on this model.
