Bison 011-175-0013 1/10 HP 90 VDC Gearmotor, 139 RPM, 12.9:1
Request a Quote
Book 15 Minutes with an Application Engineer
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

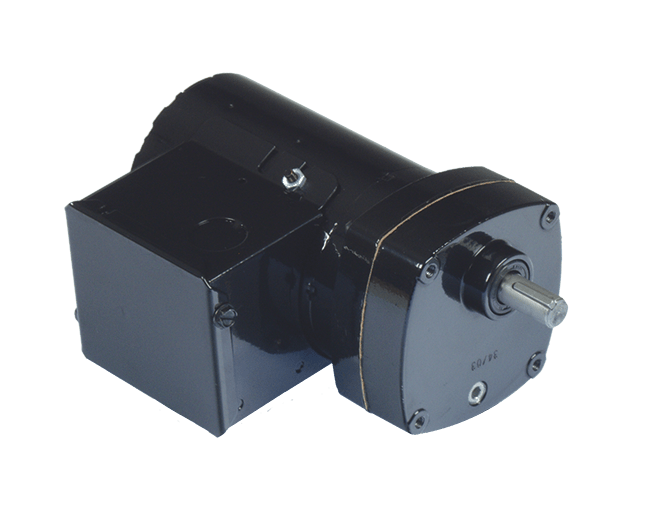

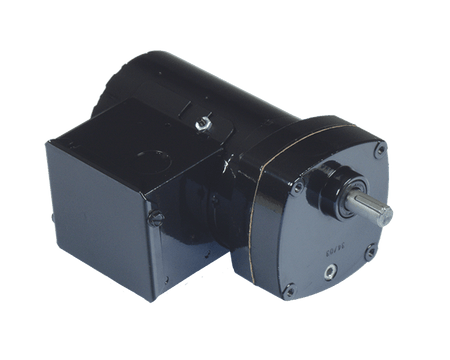

Bison 011-175-0013 DC Gearmotor
The Bison 011-175-0013 is a 1/10 HP, 90 VDC gearmotor with a 12.9:1 ratio and 139 RPM output, rated 42 in-lb. Bison lists it as GEARMOTOR 1/10HP 90VDC 12.9:1.
| Part number | 011-175-0013 |
|---|---|
| Series | 175 DC |
| Type | DC gearmotor |
| Horsepower | 1/10 HP |
| Voltage | 90 VDC |
| Output speed | 139 RPM |
| Output torque | 42 in-lb |
| Gear ratio | 12.9:1 |
| Approx. weight | 8.5 lb |
| Minarik / alternate part no. | 507-01-303 |
Specs from the Bison Gear price file. Confirm mounting, shaft and enclosure on the drawing before you order.
Need price or lead time on the 011-175-0013? Request a quote or book 15 minutes to review the application.
