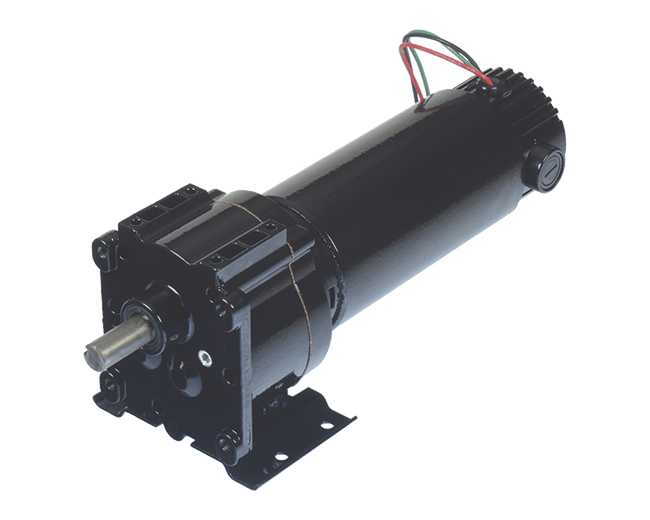

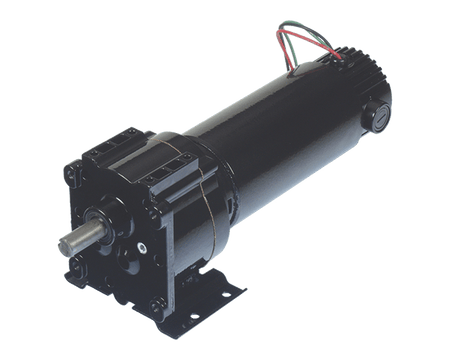

Bison 011-336-2043 DC Gearmotor
The Bison 011-336-2043 is a 1/8 HP, 90 VDC gearmotor with a 42.87:1 ratio and 42 RPM output, rated 166 in-lb. Bison lists it as 1/8HP 90VDC 43:1.
| Part number | 011-336-2043 |
|---|---|
| Series | 300 DC |
| Type | DC gearmotor |
| Horsepower | 1/8 HP |
| Voltage | 90 VDC |
| Output speed | 42 RPM |
| Output torque | 166 in-lb |
| Gear ratio | 42.87:1 |
| Approx. weight | 13 lb |
| Minarik / alternate part no. | 507-01-157 |
Specs from the Bison Gear price file. Confirm mounting, shaft and enclosure on the drawing before you order.
