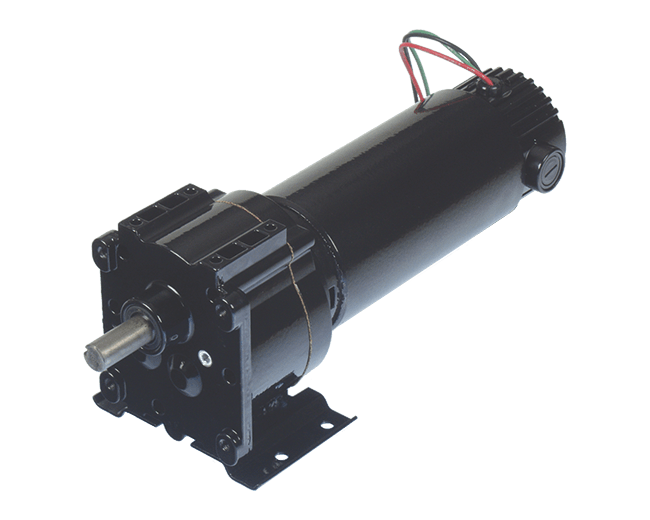

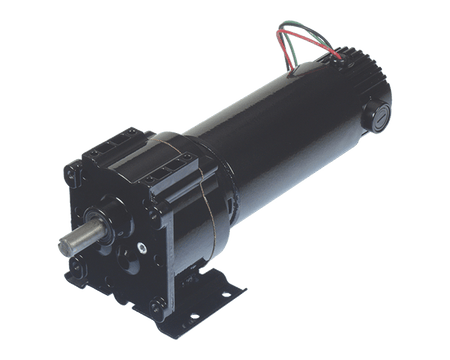

Bison 011-348-4040 DC Gearmotor
The Bison 011-348-4040 is a 1/4 HP, 90 VDC gearmotor with a 42.87:1 ratio and 42 RPM output, rated 300 in-lb max. Bison lists it as GEARMOTOR 1/4HP 90VDC 43:1.
| Part number | 011-348-4040 |
|---|---|
| Series | 300 DC |
| Type | DC gearmotor |
| Horsepower | 1/4 HP |
| Voltage | 90 VDC |
| Output speed | 42 RPM |
| Output torque | 300 in-lb max |
| Gear ratio | 42.87:1 |
| Approx. weight | 20 lb |
| Minarik / alternate part no. | 507-01-266 |
Specs from the Bison Gear price file. Confirm mounting, shaft and enclosure on the drawing before you order.
