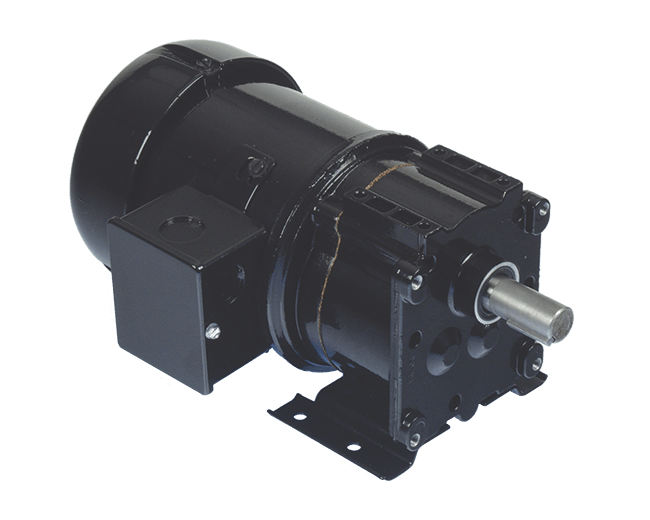

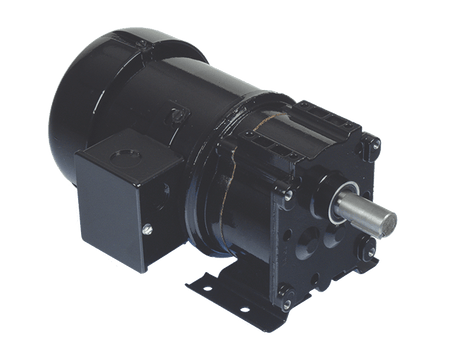

Bison 016-246-4036 AC Gearmotor
The Bison 016-246-4036 is a 1/4 HP, 115/230 VAC gearmotor with a 35.8:1 ratio and 47 RPM output, rated 294 in-lb. Bison lists it as GEARMOTOR 1/4 115/230 50/60HZ.
| Part number | 016-246-4036 |
|---|---|
| Series | 200 AC |
| Type | AC gearmotor |
| Horsepower | 1/4 HP |
| Voltage | 115/230 VAC |
| Output speed | 47 RPM |
| Output torque | 294 in-lb |
| Gear ratio | 35.8:1 |
| Approx. weight | 17.5 lb |
| Minarik / alternate part no. | 508-01-709 |
Specs from the Bison Gear price file. Confirm mounting, shaft and enclosure on the drawing before you order.
