Bison 016-246-6305 1/8 HP 115 VAC Gearmotor, 340 RPM, 5:1
Request a Quote
Book 15 Minutes with an Application Engineer
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

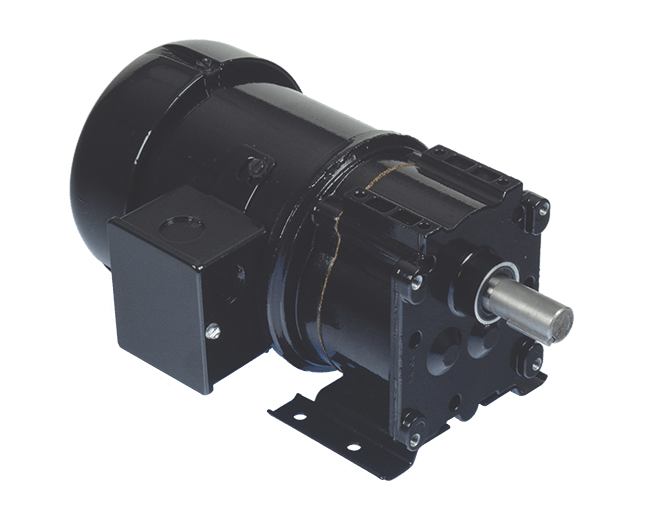

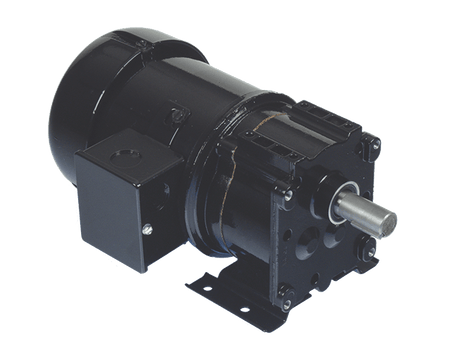

Bison 016-246-6305 AC Gearmotor
The Bison 016-246-6305 is a 1/8 HP, 115 VAC gearmotor with a 5:1 ratio and 340 RPM output, rated 16 in-lb. Bison lists it as GEARMOTOR 1/8HP 115V 60HZ.
| Part number | 016-246-6305 |
|---|---|
| Series | 100mm AC |
| Type | AC gearmotor |
| Horsepower | 1/8 HP |
| Voltage | 115 VAC |
| Output speed | 340 RPM |
| Output torque | 16 in-lb |
| Gear ratio | 5:1 |
| Approx. weight | 13.5 lb |
Specs from the Bison Gear price file. Confirm mounting, shaft and enclosure on the drawing before you order.
Need price or lead time on the 016-246-6305? Request a quote or book 15 minutes to review the application.
