Bison 016-562-1397 1/20 HP 115 VAC Gearmotor, 1.2 RPM, 1397.1:1
Request a Quote
Book 15 Minutes with an Application Engineer
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

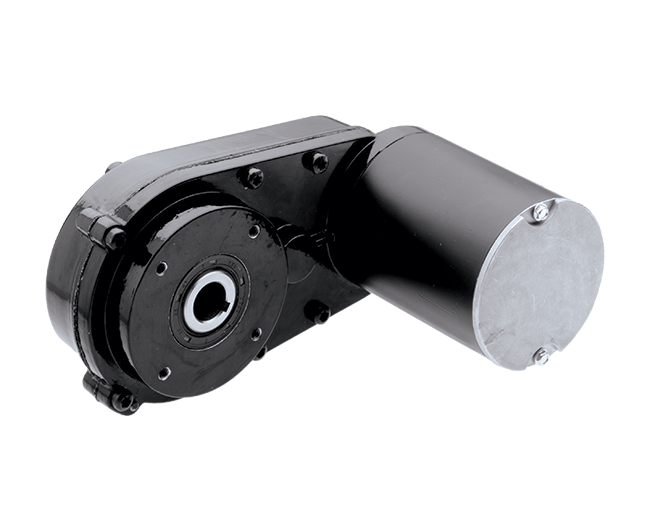

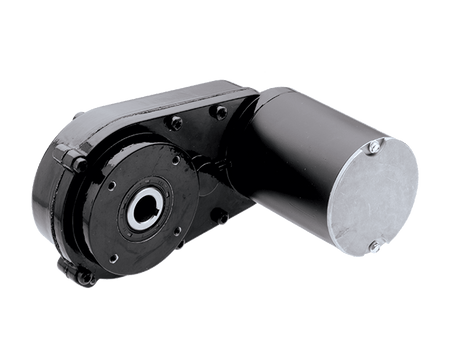

Bison 016-562-1397 AC Gearmotor
The Bison 016-562-1397 is a 1/20 HP, 115 VAC gearmotor with a 1397.1:1 ratio and 1.2 RPM output, rated 1100 in-lb. Bison lists it as GEARMOTOR 1/20HP 115VAC 1397:1 RATIO.
| Part number | 016-562-1397 |
|---|---|
| Series | 562 1/20 HP PSC AC |
| Type | AC gearmotor |
| Horsepower | 1/20 HP |
| Voltage | 115 VAC |
| Output speed | 1.2 RPM |
| Output torque | 1100 in-lb |
| Gear ratio | 1397.1:1 |
| Approx. weight | 12 lb |
| Minarik / alternate part no. | 508-03-007 |
Specs from the Bison Gear price file. Confirm mounting, shaft and enclosure on the drawing before you order.
Need price or lead time on the 016-562-1397? Request a quote or book 15 minutes to review the application.
