Bison 017-175-0025 1/12 HP 230/460 VAC Gearmotor, 63 RPM, 25.2:1
Request a Quote
Book 15 Minutes with an Application Engineer
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

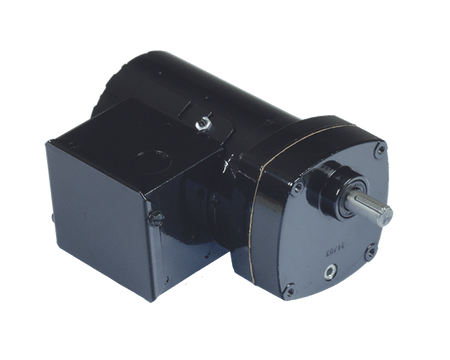

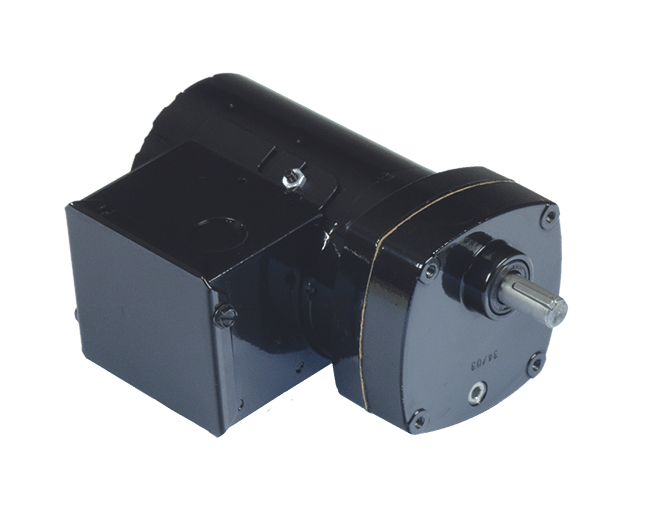

Bison 017-175-0025 AC Gearmotor
The Bison 017-175-0025 is a 1/12 HP, 230/460 VAC gearmotor with a 25.2:1 ratio and 63 RPM output, rated 74 in-lb. Bison lists it as 1/12 HP 230/460/60 3PH.
| Part number | 017-175-0025 |
|---|---|
| Series | 175 AC |
| Type | AC gearmotor |
| Horsepower | 1/12 HP |
| Voltage | 230/460 VAC |
| Output speed | 63 RPM |
| Output torque | 74 in-lb |
| Gear ratio | 25.2:1 |
| Approx. weight | 9 lb |
| Minarik / alternate part no. | 508-01-224 |
Specs from the Bison Gear price file. Confirm mounting, shaft and enclosure on the drawing before you order.
Need price or lead time on the 017-175-0025? Request a quote or book 15 minutes to review the application.
