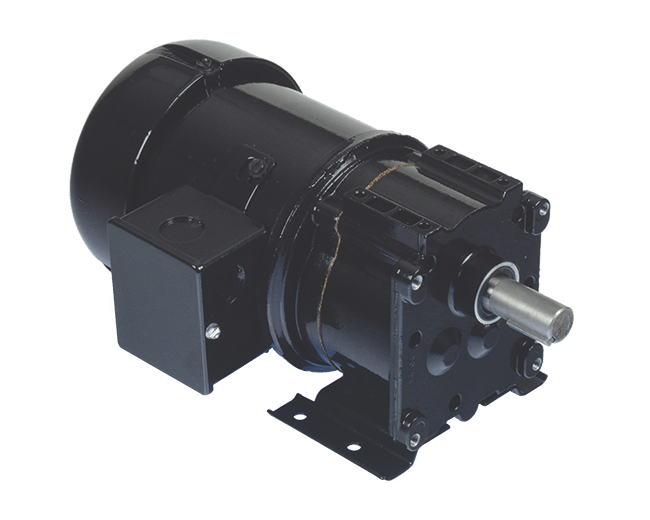

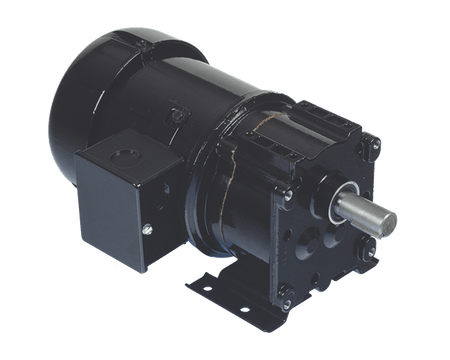

Bison 017-246-0029 AC Gearmotor
The Bison 017-246-0029 is a 1/4 HP, 230/460 VAC gearmotor with a 28.13:1 ratio and 59.72 RPM output, rated 159 in-lb. Bison lists it as GEARMOTOR 1/4HP 230/460/60 3PH.
| Part number | 017-246-0029 |
|---|---|
| Series | 200 AC |
| Type | AC gearmotor |
| Horsepower | 1/4 HP |
| Voltage | 230/460 VAC |
| Output speed | 59.72 RPM |
| Output torque | 159 in-lb |
| Gear ratio | 28.13:1 |
| Approx. weight | 18 lb |
| Minarik / alternate part no. | 508-01-755 |
Specs from the Bison Gear price file. Confirm mounting, shaft and enclosure on the drawing before you order.
