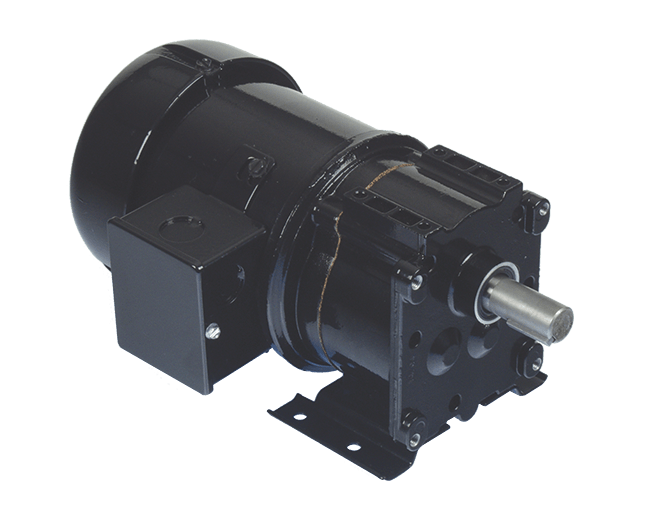

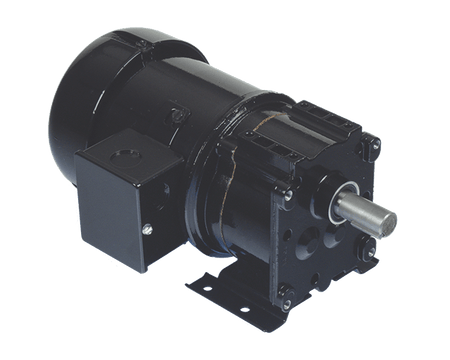

Bison 017-246-0058 AC Gearmotor
The Bison 017-246-0058 is a 1/4 HP, 230/460 VAC gearmotor with a 58.25:1 ratio and 28.84 RPM output, rated 278 in-lb. Bison lists it as GEARMOTOR 1/4 HP 230/460/60.
| Part number | 017-246-0058 |
|---|---|
| Series | 200 AC |
| Type | AC gearmotor |
| Horsepower | 1/4 HP |
| Voltage | 230/460 VAC |
| Output speed | 28.84 RPM |
| Output torque | 278 in-lb |
| Gear ratio | 58.25:1 |
| Approx. weight | 18 lb |
| Minarik / alternate part no. | 508-01-757 |
Specs from the Bison Gear price file. Confirm mounting, shaft and enclosure on the drawing before you order.
