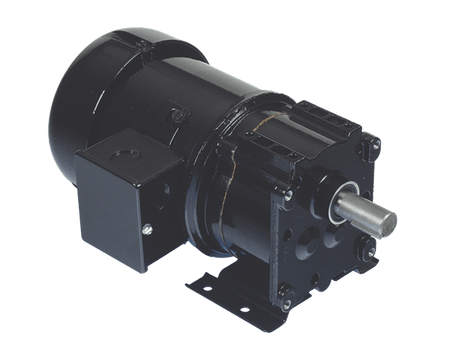

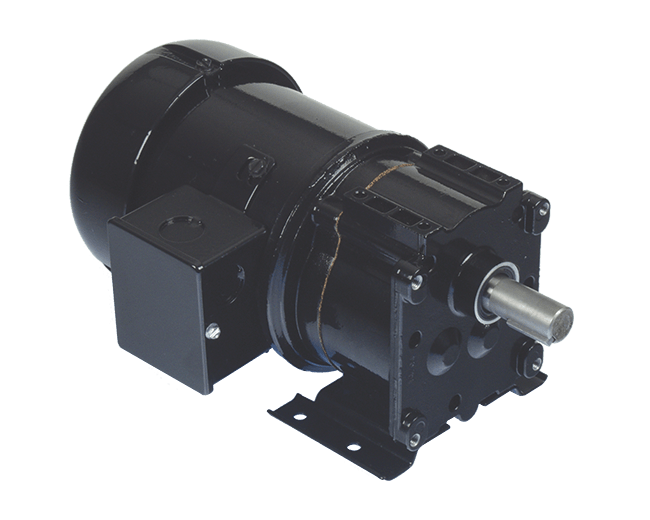

Bison 017-247-0058 AC Gearmotor
The Bison 017-247-0058 is a 1/4 HP, 230 VAC gearmotor with a 58.2:1 ratio and 30 RPM output, rated 288 in-lb max. Bison lists it as INVERTER DUTY AC GEARMOTOR.
| Part number | 017-247-0058 |
|---|---|
| Series | 200 AC |
| Type | AC gearmotor |
| Horsepower | 1/4 HP |
| Voltage | 230 VAC |
| Output speed | 30 RPM |
| Output torque | 288 in-lb max |
| Gear ratio | 58.2:1 |
| Approx. weight | 18 lb |
| Minarik / alternate part no. | 508-01-403 |
Specs from the Bison Gear price file. Confirm mounting, shaft and enclosure on the drawing before you order.
Need price or lead time on the 017-247-0058? Request a quote or book 15 minutes to review the application.
