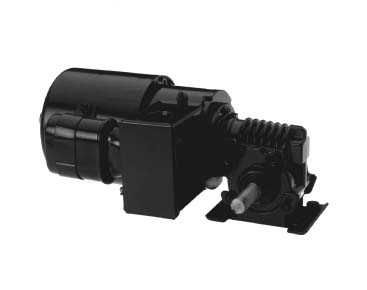

Bison 021-746-9310 DC Gearmotor
The Bison 021-746-9310 is a 1/15 HP, 90 VDC gearmotor with a 10:1 ratio and 180 RPM output, rated 15 in-lb. Bison lists it as I-L 1/15HP 10:1 RATIO 90VDC.
| Part number | 021-746-9310 |
|---|---|
| Series | 746 DC |
| Type | DC gearmotor |
| Horsepower | 1/15 HP |
| Voltage | 90 VDC |
| Output speed | 180 RPM |
| Output torque | 15 in-lb |
| Gear ratio | 10:1 |
| Approx. weight | 7.5 lb |
| Minarik / alternate part no. | 507-02-135L |
Specs from the Bison Gear price file. Confirm mounting, shaft and enclosure on the drawing before you order.
