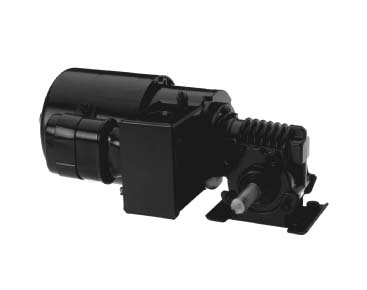

Bison 026-756-4645 AC Gearmotor
The Bison 026-756-4645 is a 1/4 HP, 115/230 VAC gearmotor with a 45:1 ratio and 36 RPM output, rated 120 in-lb. Bison lists it as GEARMOTOR 1/4 HP 115/230 VAC 60/50 HZ.
| Part number | 026-756-4645 |
|---|---|
| Bison price list group | 750 1/4HP AC STD |
| Type | AC gearmotor |
| Horsepower | 1/4 HP |
| Voltage | 115/230 VAC |
| Output speed | 36 RPM |
| Output torque | 120 in-lb |
| Gear ratio | 45:1 |
| Approx. weight | 19.75 lb |
| Minarik / alternate part no. | 508-02-184 |
Specs from the Bison Gear price file. Confirm mounting, shaft and enclosure on the drawing before you order.
