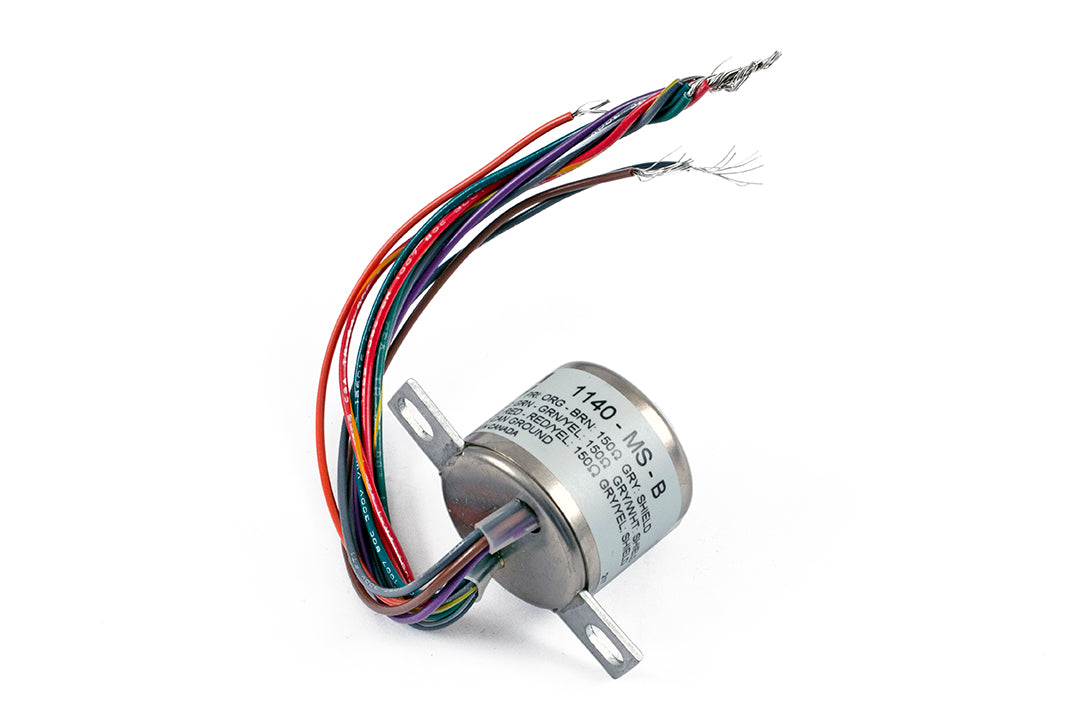

1140-MS-B Hammond Audio Transformer
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1140-MS-B is listed by Hammond as audio transformer, mic splitter, chassis mount, impedance ratio 150:150:150, from the Studio Grade Impedance Matching Transformers (1140 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1140-MS-B specifications
| Catalog number | 1140-MS-B |
| Manufacturer | Hammond Manufacturing |
| Series | Studio Grade Impedance Matching Transformers (1140 Series) |
| Hammond description | Audio transformer, mic splitter, chassis mount, impedance ratio 150:150:150 |
| Hammond short description | CHASSIS MT MIC SPLITTER TX |
| Shipping weight | 0.2 lb (0.09 kg) |
| Impedance Ratio | 150:150:150 |
| Turns Ratio | 1:1 |
| Max Input @ 20Hz | +2.0 dBu |
| THD @ 20 Hz. | 0.030% |
| Frequency Response 20Hz / 20kHz | -0.08 dB/+0.06 dB |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1140-MS-B. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1140-MS-B · Hammond 1140 series specification sheet (PDF).
