11843803055

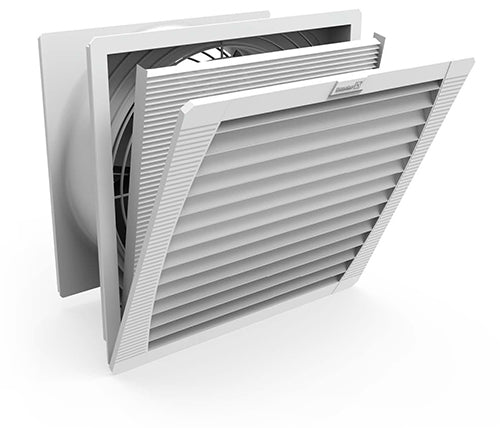

Pfannenberg Part: 11843803055, PF 43000 24VDC 155 cfm EMC Type 12 Filterfan (Light Gray). Description:The electromagnetic compatibility shielded filterfan provides protection against electromagnetic interference by ensuring continuity between the shielding part of the fan and the metal structure of the cabinet. The front cover of this product has the color RAL7035 (Light Gray). The advantages of the series at a glance:
- For reliable use in the area of electromagnetic fields (metallic shielding).
- High air flow (155 CFM) in small package with low energy consumption.
- Secure contact service on the installation cut-out edges without beryllium copper gaskets.
- Uniquely high air flow due to optimized louvre design.
- NEMA Type 12, closed frame prevents unfiltered air from penetrating.
- Includes G4 filter class fluted material filter media that can be replaced easily and in seconds due to the optimized front cover.
- Patented tool-free 4-corner fastening system enables installation in seconds and guarantees a secure hold.
- Poured foam seal facilitates the installation.
- Flat shape and neutral design make a perfect integration into existing machines possible.
- The filterfans can be retrofitted in most applications because the mounting cut-outs are compatible.
- Attenuation at 30 MHz about 71 dB
- Attenuation at 400 MHz about 57 dB. Cutout Dimensions:8.82 in x 8.82 in
