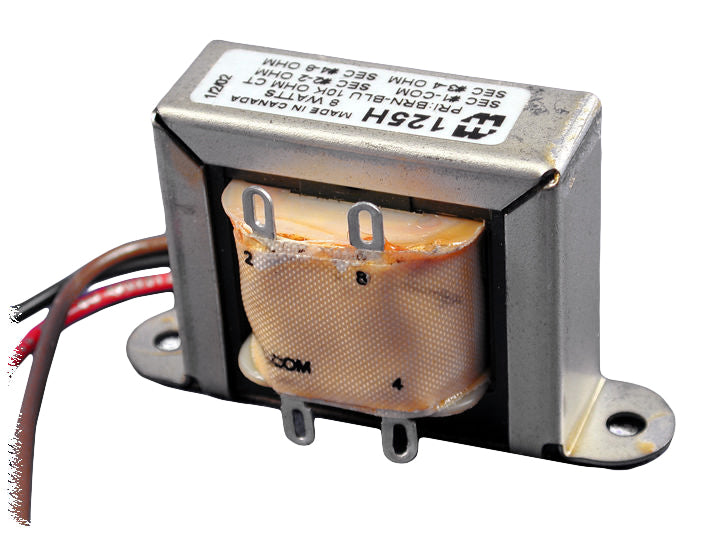

125H Hammond Audio Transformer
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 125H is listed by Hammond as audio transformer, universal single ended or push-pull tube output, 8 watts, from the General Replacement Tube Output (8 Watt) Push-Pull (125H Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
125H specifications
| Catalog number | 125H |
| Manufacturer | Hammond Manufacturing |
| Series | General Replacement Tube Output (8 Watt) Push-Pull (125H Series) |
| Hammond description | Audio transformer, universal single ended or push-pull tube output, 8 watts |
| Hammond short description | AUDIO TX OUTPUT SE OR PP |
| Shipping weight | 0.55 lb (0.25 kg) |
| Audio Watts | 8 |
| Primary Inpedance (Ohms) | 10K |
| Secondary Impedance (Ohms) | 2,4, or 8 |
| Primary Inductance | 5.60 H |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 125H. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 125H · Hammond 125H series specification sheet (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
