1414N4A Hammond Type 4 Junction Box, Lift Off Cover, 4 x 4 x 3 in, Steel, Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

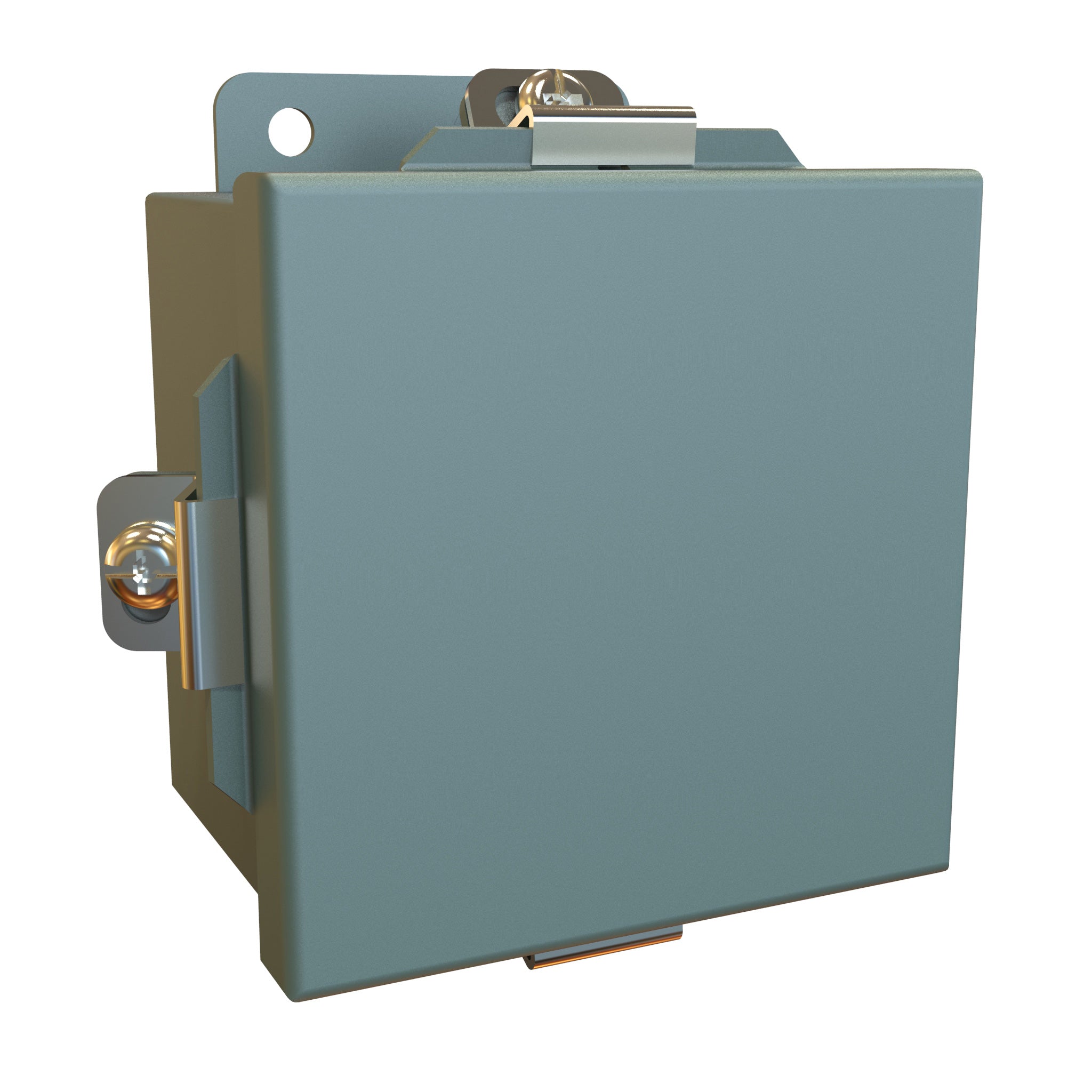

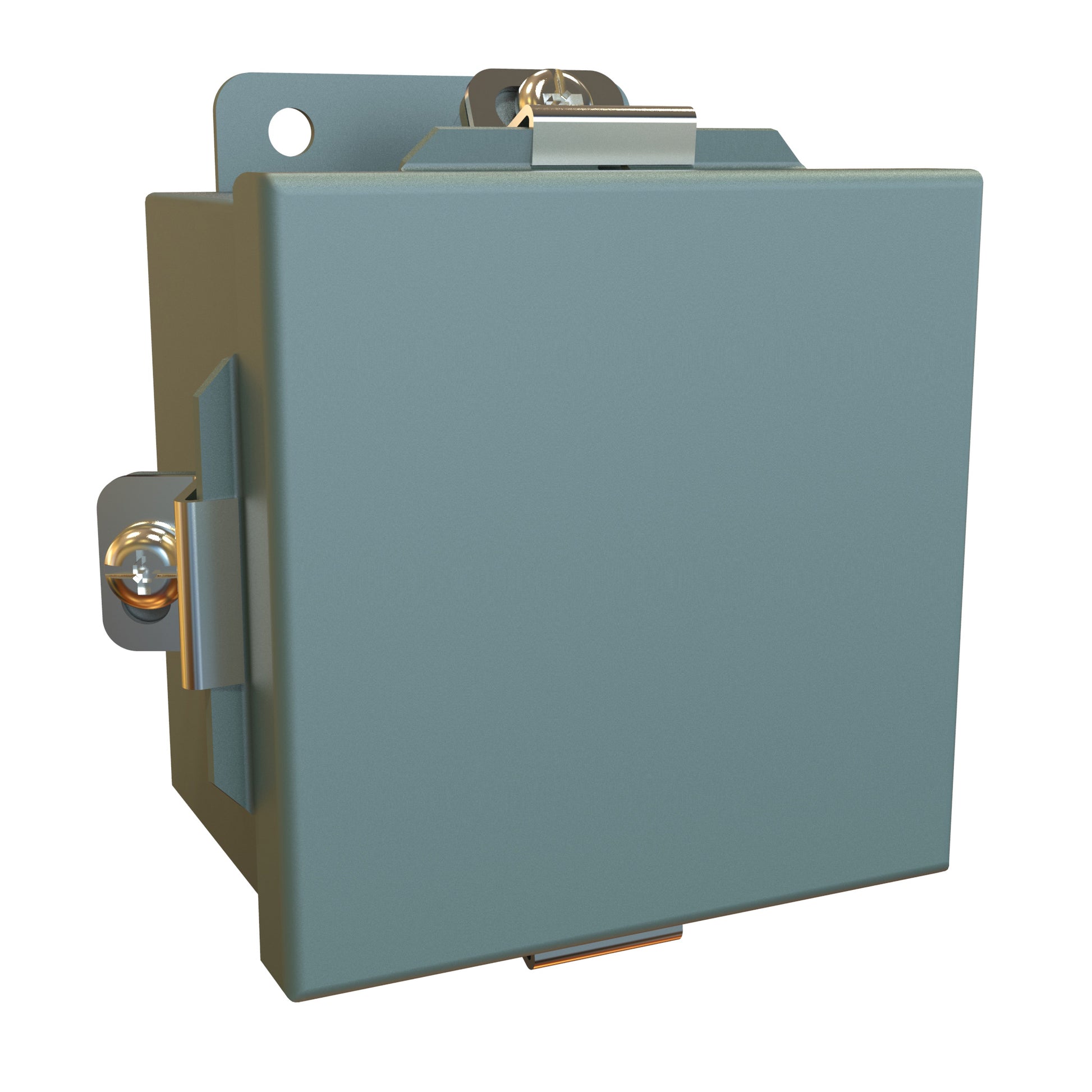

The Hammond Manufacturing 1414N4A is a Type 4 junction box with a lift off cover, 4 x 4 x 3 in (H x W x D), mild steel with a gray finish. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any cutouts or modifications, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1414N4A specifications
| Catalog number | 1414N4A |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4 Mild Steel Junction Box (1414 N4 Series) |
| Hammond description | N4 J Box, Lift Off Cover - 4 x 4 x 3 - Steel/Gray |
| Dimensions | 4 x 4 x 3 in H x W x D (102 x 102 x 76 mm) |
| Material and finish | Mild steel, gray finish |
| Type rating | NEMA Type 4 |
| Cover | Lift Off Cover |
| Weight | 2 lb (0.91 kg) |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1414N4A. Confirm against the current drawing before you cut or mount.
Hammond specification sheet for the 1414 N4 Series (PDF) and 1414N4A drawing (PDF).
Cross reference
These crosses come from Hammond's own cross reference for the 1414N4A. They cover Hoffman. Check the drawing before you swap a box in an existing layout.
| Brand | Competitor part | Hammond part |
|---|---|---|
| Hoffman | A404NF | 1414N4A |
Replacing a Hoffman, Saginaw or Wiegmann junction box? Send that part number and we will cross it to the matching Hammond catalog number. See the Hoffman to Hammond cross reference and the enclosure cross reference. See all Hammond enclosures.
