1414N4SSM6 Hammond Type 4X Junction Box, Lift Off Cover, with Panel, 14 x 12 x 6 in, 304 Stainless Steel
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

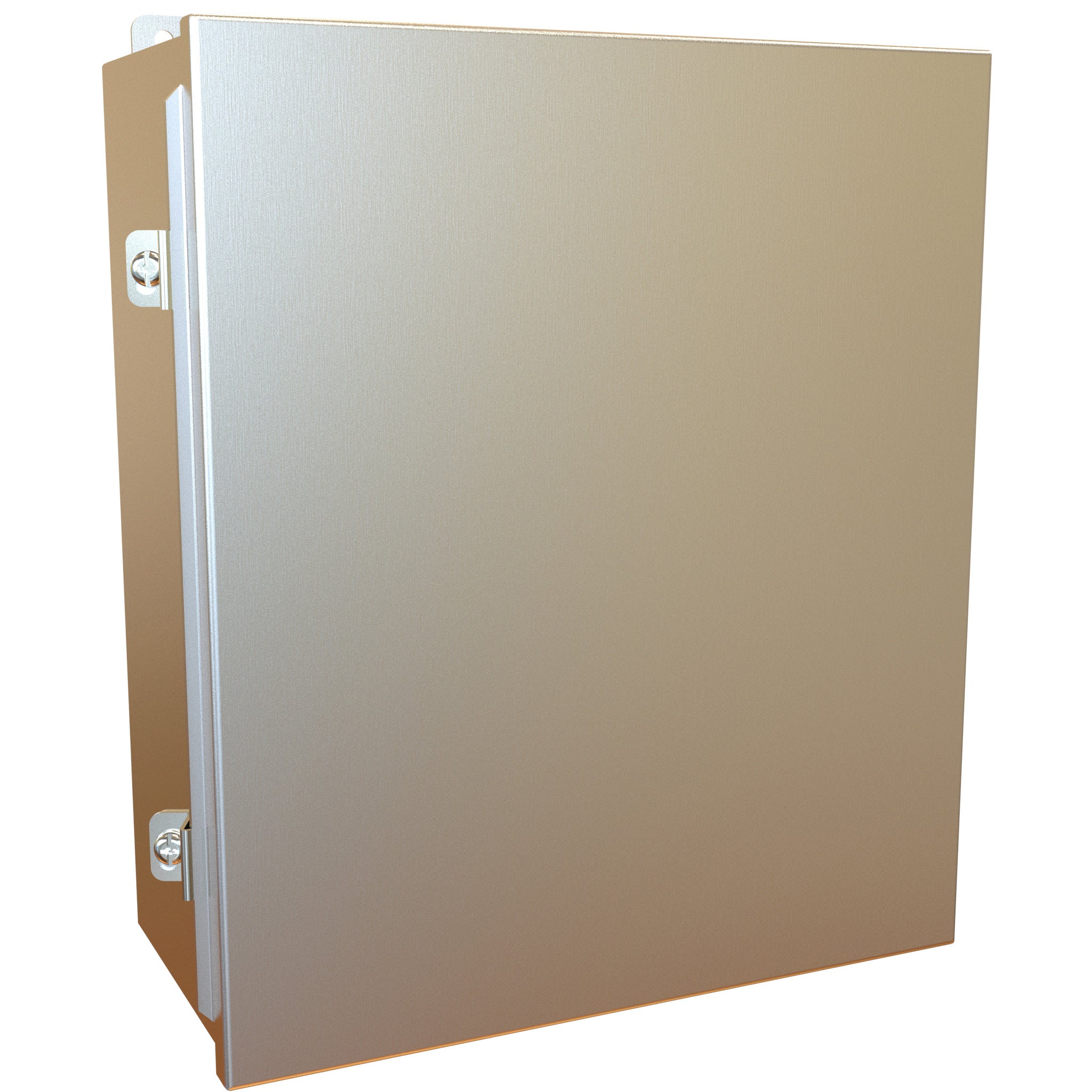

The Hammond Manufacturing 1414N4SSM6 is a Type 4X junction box with a lift off cover and a mounting panel, 14 x 12 x 6 in (H x W x D), 304 stainless steel. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any cutouts or modifications, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1414N4SSM6 specifications
| Catalog number | 1414N4SSM6 |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4X Stainless Steel Junction Box (1414 N4 SS Series) |
| Hammond description | N4X J Box, Lift Off Cover w/panel - 14 x 12 x 6 - 304 SS |
| Dimensions | 14 x 12 x 6 in H x W x D (356 x 305 x 152 mm) |
| Material and finish | 304 Stainless Steel |
| Type rating | NEMA Type 4X |
| Cover | Lift Off Cover |
| Panel | Included |
| UL file | E65324 |
| CSA certificate | LR21001 |
| Weight | 20 lb (9.07 kg) |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1414N4SSM6. Confirm against the current drawing before you cut or mount.
Hammond specification sheet for the 1414 N4 SS Series (PDF) and 1414N4SSM6 drawing (PDF).
Cross reference
These crosses come from Hammond's own cross reference for the 1414N4SSM6. They cover Hoffman and Eaton B-Line. The Hammond box ships with its panel. The other boxes list the panel as a separate part, shown in the panel column. Check the drawing before you swap a box in an existing layout.
| Brand | Competitor part | Competitor panel | Hammond part |
|---|---|---|---|
| Hoffman | A1412NFSS | A14P12 | 1414N4SSM6 |
| Eaton B-Line | 14126-4XSLC | AW1412P | 1414N4SSM6 |
Replacing a Hoffman, Saginaw or Wiegmann junction box? Send that part number and we will cross it to the matching Hammond catalog number. See the Hoffman to Hammond cross reference and the enclosure cross reference. See all Hammond enclosures.
Request a QuoteBook 15 Minutes
Hoffman, nVent, Eaton, B-Line, Saginaw and Wiegmann are trademarks of their respective owners. Applied Control Inc. is not affiliated with these companies. Competitor names appear only to identify products for comparison.
