1414PHA4 Hammond Type 12 Junction Box, Hinged Cover, 4 x 4 x 4 in, Steel, Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

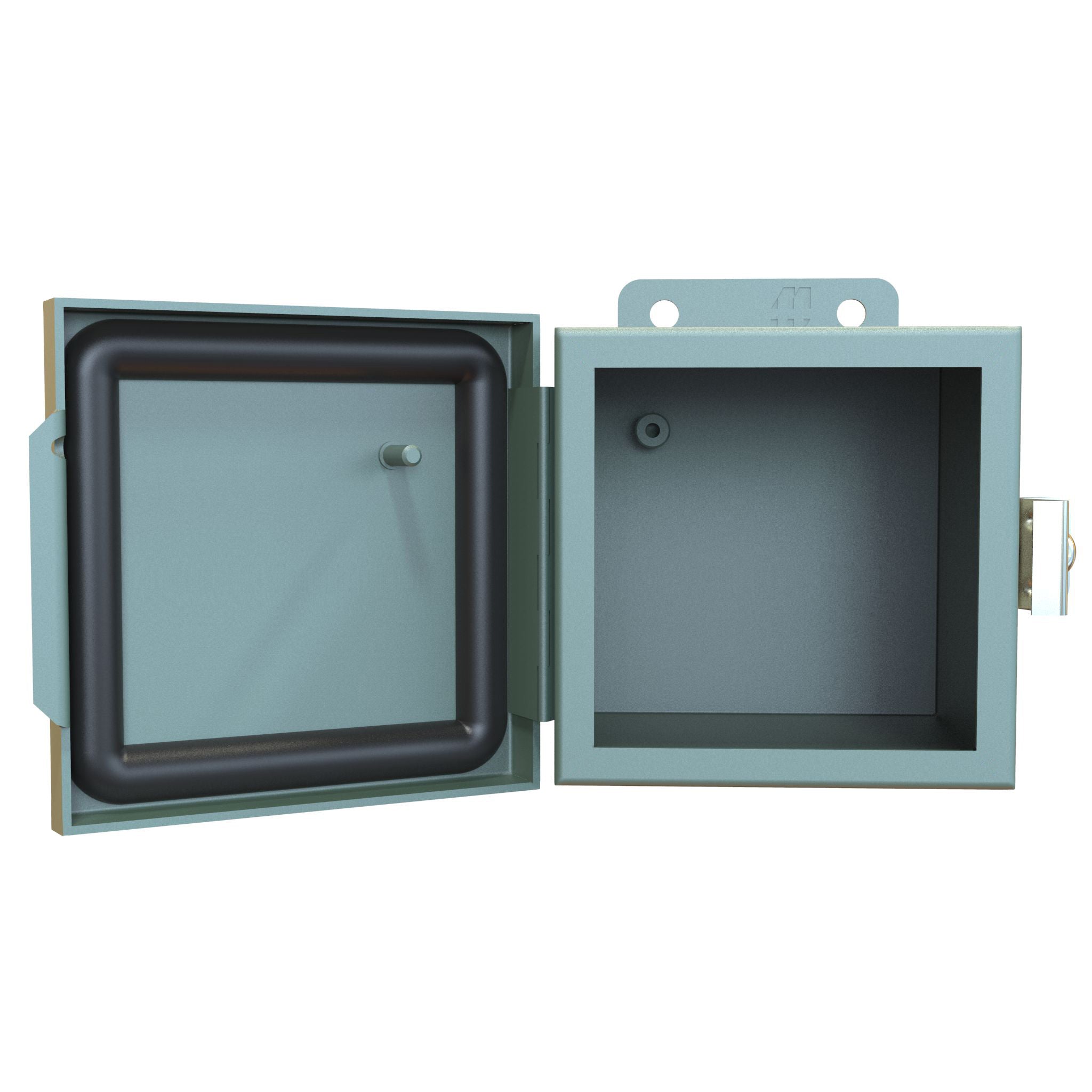

The Hammond Manufacturing 1414PHA4 is a Type 12 junction box with a hinged cover, 4 x 4 x 4 in (H x W x D), steel with a gray finish. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any cutouts or modifications, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1414PHA4 specifications
| Catalog number | 1414PHA4 |
| Manufacturer | Hammond Manufacturing |
| Hammond description | N12 J Box, Hinge Cover - 4 x 4 x 4 - Steel/Gray |
| Dimensions | 4 x 4 x 4 in H x W x D (102 x 102 x 102 mm) |
| Material and finish | Steel, gray finish |
| Type rating | NEMA Type 12 |
| Cover | Hinged Cover |
| Panel | Not included |
Specifications from the Hammond Manufacturing description for 1414PHA4. Confirm against the current Hammond drawing before you cut or mount.
Cross reference
These crosses come from Hammond's own cross reference for the 1414PHA4. They cover Hoffman. Check the drawing before you swap a box in an existing layout.
| Brand | Competitor part | Competitor panel | Hammond part |
|---|---|---|---|
| Hoffman | A4044CH | None listed | 1414PHA4 |
Replacing a Hoffman, Eaton B-Line or Saginaw junction box? See the Hammond 1414 junction box cross reference, the Hoffman to Hammond cross reference and all Hammond enclosures.
