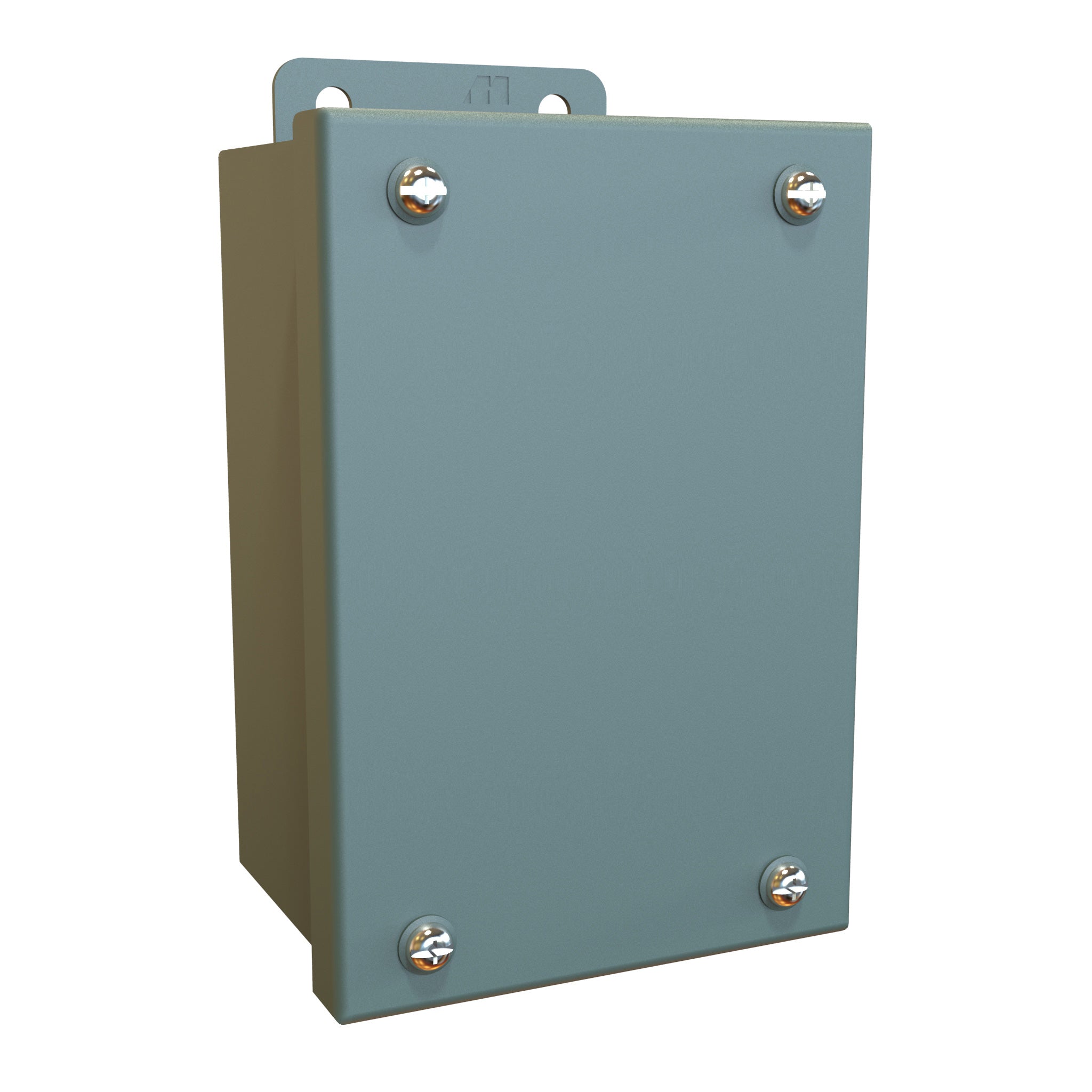

1414SCC Hammond Type 12 Junction Box, Screw Cover, with Panel, 6 x 4 x 3 in, Steel, Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1414SCC is a Type 12 junction box with a screw cover and a mounting panel, 6 x 4 x 3 in (H x W x D), steel with a gray finish. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any cutouts or modifications, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1414SCC specifications
| Catalog number | 1414SCC |
| Manufacturer | Hammond Manufacturing |
| Hammond description | N12 J Box, Screw Cover w/panel - 6 x 4 x 3 - Steel/Gray |
| Dimensions | 6 x 4 x 3 in H x W x D (152 x 102 x 76 mm) |
| Material and finish | Steel, gray finish |
| Type rating | NEMA Type 12 |
| Cover | Screw Cover |
| Panel | Included |
Specifications from the Hammond Manufacturing description for 1414SCC. Confirm against the current Hammond drawing before you cut or mount.
Cross reference
These crosses come from Hammond's own cross reference for the 1414SCC. They cover Hoffman, Eaton B-Line and Saginaw. The Hammond box ships with its panel. The competitor panel part is shown in the panel column. Check the drawing before you swap a box in an existing layout.
| Brand | Competitor part | Competitor panel | Hammond part |
|---|---|---|---|
| Hoffman | A604SC | A6P4 | 1414SCC |
| Eaton B-Line | 643-12SC | AW64P | 1414SCC |
| Saginaw | SCE-604SC | SCE-6P4 | 1414SCC |
Replacing a Hoffman, Eaton B-Line or Saginaw junction box? See the Hammond 1414 junction box cross reference, the Hoffman to Hammond cross reference and all Hammond enclosures.
