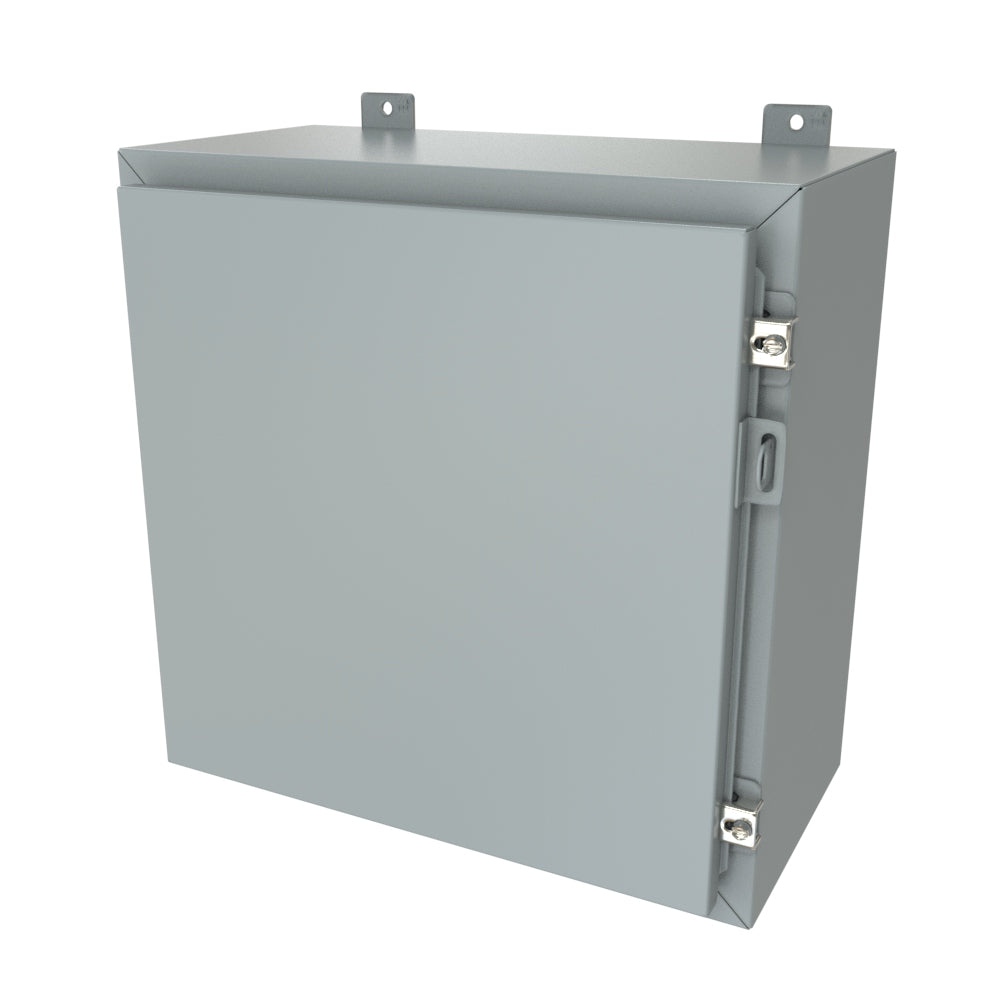

1418D10LP Hammond Type 4/12 Wallmount Enclosure, Less Panel, 20 x 20 x 10 in, Steel, Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1418D10LP is a Type 4/12 wallmount enclosure, 20 x 20 x 10 in (H x W x D), mild steel with a gray finish. It ships less panel, so order the mounting panel with it. Hammond names 1418D10LP as the replacement for the discontinued 1418D10. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, the panel and any cutouts, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1418D10LP specifications
| Catalog number | 1418D10LP |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4/12 Mild Steel Wallmount Enclosure - Less Panel (1418LP Series) |
| Hammond description | N4/12 Wallmount Encl less panel - 20 x 20 x 10 - Steel/Gray |
| Dimensions | 20 x 20 x 10 in H x W x D (508 x 508 x 254 mm) |
| Material and finish | Mild steel, gray finish |
| Type rating | NEMA Type 4/12 |
| Panel | Not included (less panel) |
| UL file | E65324 |
| Weight | 42 lb (19.05 kg) |
| Replaces | 1418D10 (Hammond lists 1418D10 as discontinued and names 1418D10LP as its replacement) |
Specifications from the Hammond Manufacturing product page for 1418D10LP. Confirm against the current drawing before you cut or mount.
Hammond specification sheet for the 1418LP Series (PDF) and 1418D10LP drawing (PDF).
Cross reference
Replacing a Hoffman, Saginaw or Wiegmann wallmount enclosure? Send that part number and we will cross it to the matching Hammond catalog number. See the Hoffman to Hammond cross reference and the enclosure cross reference. Size the cooling with the enclosure heat load calculator. See all Hammond enclosures.
