1418N4E8 Hammond Type 4 Wallmount Enclosure with Panel, 24 x 20 x 8 in, Steel, Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

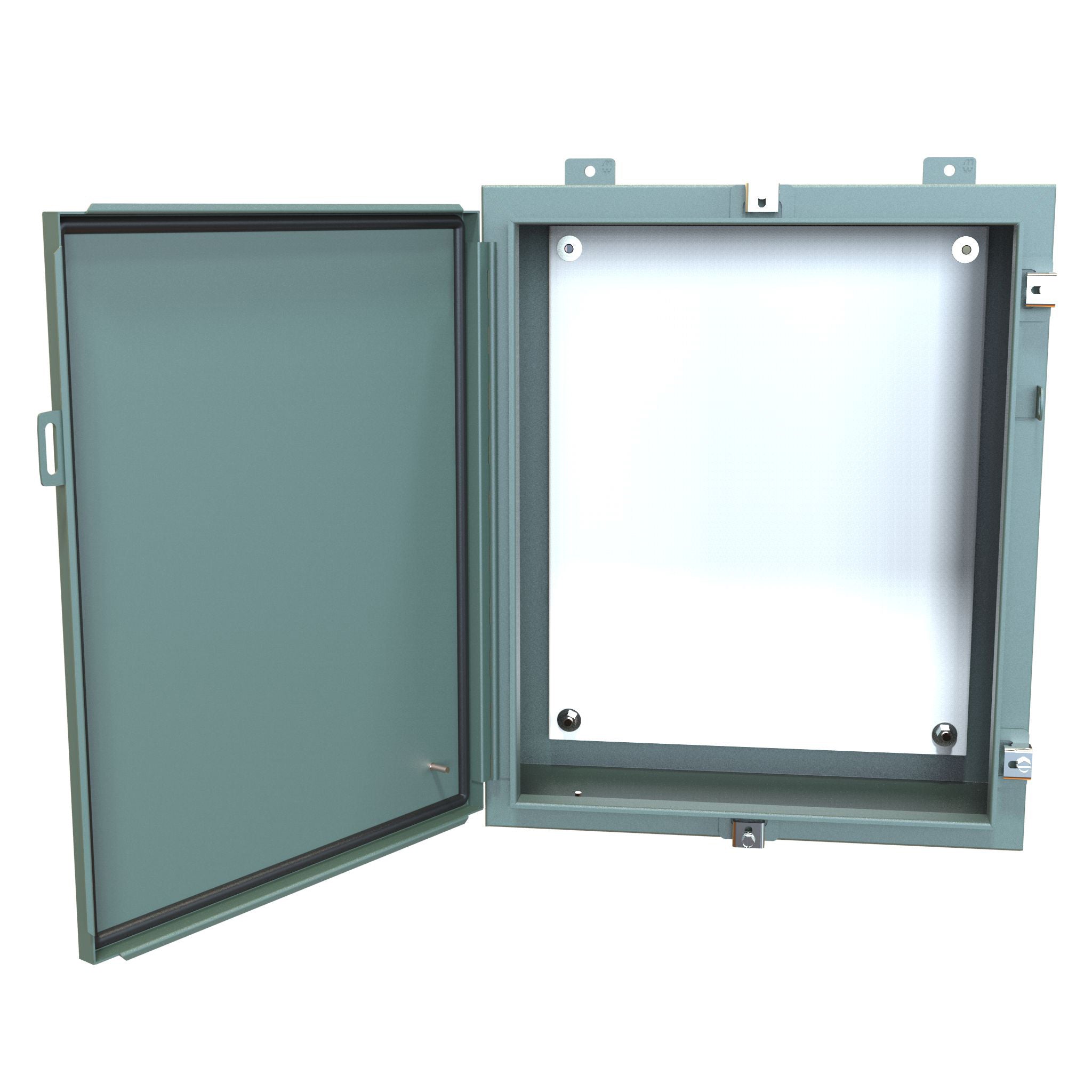

The Hammond Manufacturing 1418N4E8 is a Type 4 wallmount enclosure with a mounting panel, 24 x 20 x 8 in (H x W x D), mild steel with a gray finish. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any cutouts or modifications, and the quote comes back the same business day.
Stock status: Hammond lists 1418N4E8 as soon to be discontinued as a stocked part, available while quantities last. Send the number and we will quote it or the current equivalent.
Request a QuoteBook 15 Minutes
1418N4E8 specifications
| Catalog number | 1418N4E8 |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4 Mild Steel Wallmount Enclosure (1418 N4 Series) |
| Hammond description | N4 Wallmount Encl w/panel - 24 x 20 x 8 - Steel/Gray |
| Dimensions | 24 x 20 x 8 in H x W x D (610 x 508 x 203 mm) |
| Material and finish | Mild steel, gray finish |
| Type rating | NEMA Type 4 |
| Panel | Included |
| UL file | E65324 |
| CSA certificate | LR21001 |
| Weight | 56 lb (25.40 kg) |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1418N4E8. Confirm against the current drawing before you cut or mount.
Hammond specification sheet for the 1418 N4 Series (PDF) and 1418N4E8 drawing (PDF).
Cross reference
These crosses come from Hammond's own cross reference for the 1418N4E8. They cover Hoffman, Eaton B-Line and Saginaw. The Hammond box ships with its panel. The other boxes list the panel as a separate part, shown in the panel column. Check the drawing before you swap a box in an existing layout.
| Brand | Competitor part | Competitor panel | Hammond part |
|---|---|---|---|
| Hoffman | A24H20BLP | A24P20 | 1418N4E8 |
| Eaton B-Line | 24208-4 | AW2420P | 1418N4E8 |
| Saginaw | SCE-24H2008LP | SCE-24P20 | 1418N4E8 |
Replacing a Hoffman, Saginaw or Wiegmann wallmount enclosure? Send that part number and we will cross it to the matching Hammond catalog number. See the Hoffman to Hammond cross reference and the enclosure cross reference. Sealing drives or power supplies inside? Size the cooling with the enclosure heat load calculator. See all Hammond enclosures.
