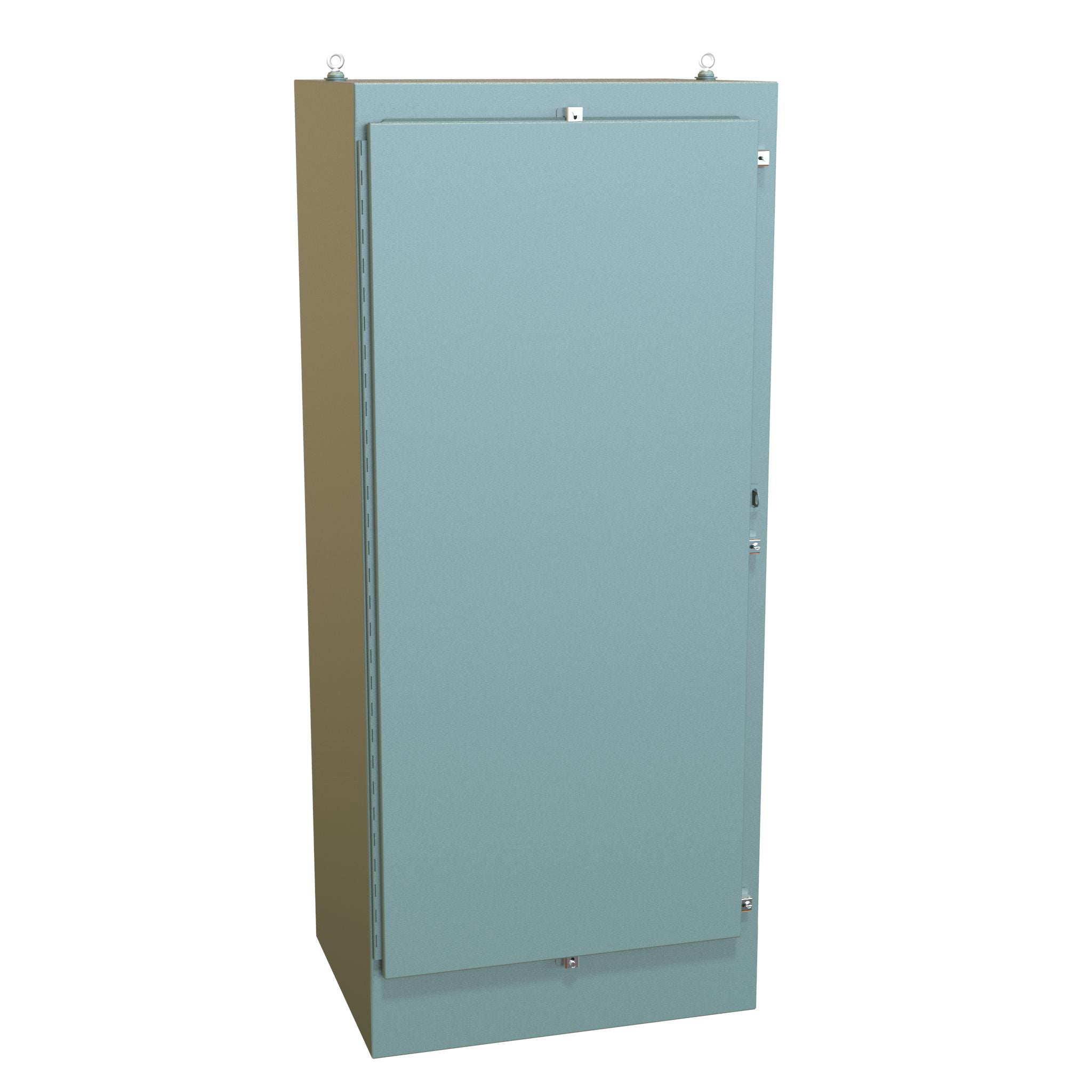

1418N4X24 Hammond Type 4 Freestanding Enclosure, 72 x 31 x 24 in, Steel, Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1418N4X24 is a Type 4 freestanding enclosure, 72 x 31 x 24 in (H x W x D), mild steel with a gray finish. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any cutouts or modifications, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1418N4X24 specifications
| Catalog number | 1418N4X24 |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4 Mild Steel Freestanding Enclosure (1418 N4 FS Series) |
| Hammond description | N4 Freestanding Encl - 72 x 31 x 24 - Steel/Gray |
| Nominal size | 72 x 31 x 24 in H x W x D |
| Outside size | 72.06 x 31.06 x 24.06 in (1830 x 789 x 611 mm) H x W x D |
| Material and finish | Mild steel, gray finish |
| Type rating | NEMA Type 4 |
| Mounting | Freestanding |
| UL file | E65324 |
| CSA certificate | LR21001 |
| Shipping weight | 350 lb (158.76 kg) |
Specifications from the Hammond Manufacturing product page for 1418N4X24. Confirm against the current drawing before you cut or mount.
Hammond specification sheet for the 1418 N4 FS Series (PDF) and 1418N4X24 drawing (PDF).
Cross reference
Replacing a Hoffman, Saginaw or Wiegmann enclosure? Send that part number and we will cross it to the matching Hammond catalog number. See the Hoffman to Hammond cross reference and the enclosure cross reference. Sealing drives or power supplies inside? Size the cooling with the enclosure heat load calculator. See all Hammond enclosures.
