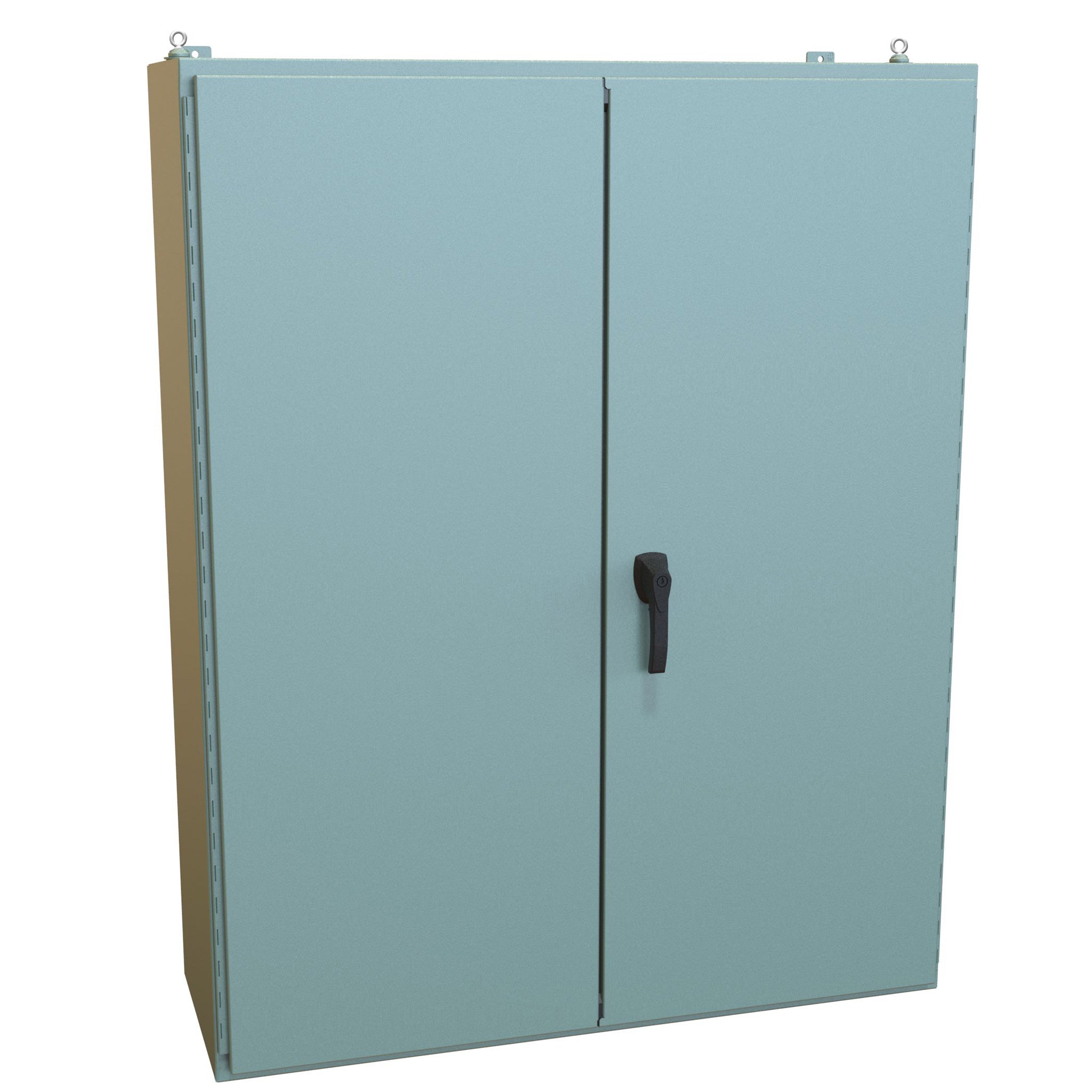

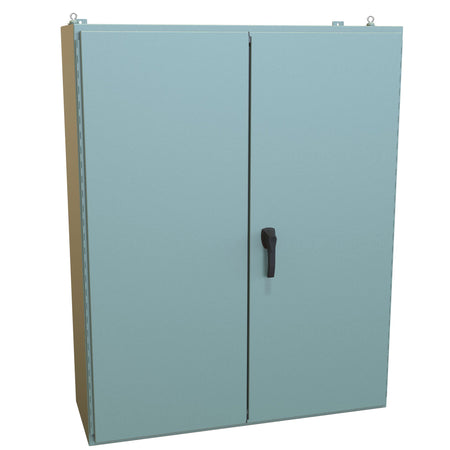

1422B16 Hammond Type 12 Mild Steel Two Door Floormount Enclosure
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1422B16 is listed by Hammond as N12 Dbl Door Wallmount Encl w/panel, 60 x 48 x 16, Steel/Gray, from the Type 12 Mild Steel Two Door Floormount Enclosure (1422 FM Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1422B16 specifications
| Catalog number | 1422B16 |
| Manufacturer | Hammond Manufacturing |
| Series | Type 12 Mild Steel Two Door Floormount Enclosure (1422 FM Series) |
| Hammond description | N12 Dbl Door Wallmount Encl w/panel, 60 x 48 x 16, Steel/Gray |
| Hammond short description | NEMA12 TWO DR ENC60X48X16 |
| Size H x W x D | 60.13 in x 48.06 in x 16.69 in (1,527 mm x 1,221 mm x 424 mm) |
| Shipping weight | 460 lb (208.65 kg) |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1422B16. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1422B16 · Hammond 1422 FM series specification sheet (PDF) · BUL10020, MISC, ENCLOSURE DETAILS (PDF) · CE Declaration (PDF).
