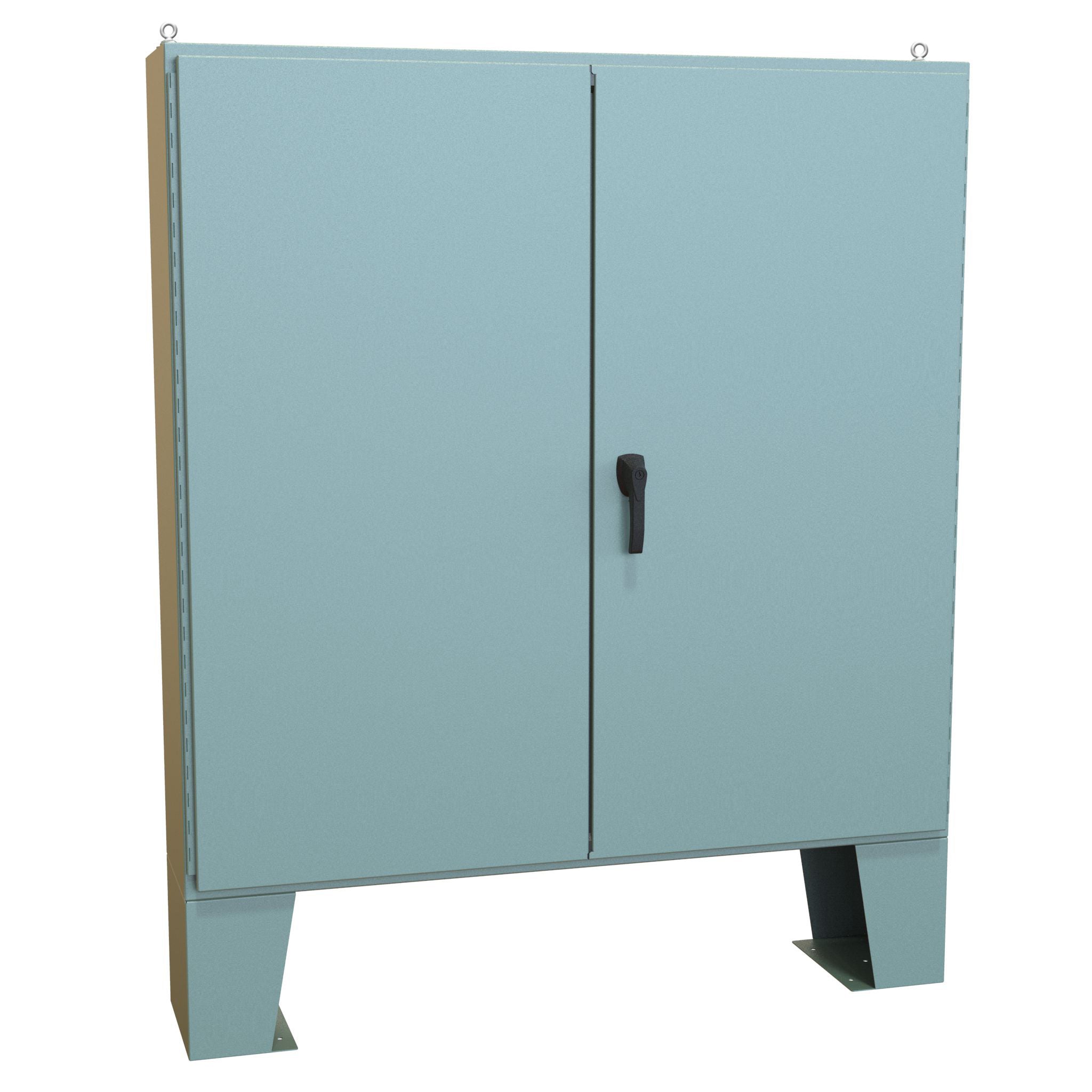

1422D12F Hammond Type 12 Mild Steel Two Door Floormount Enclosure
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1422D12F is listed by Hammond as N12 Dbl Door Floormount Encl w/panel, 60 x 60 x 12, Steel/Gray, from the Type 12 Mild Steel Two Door Floormount Enclosure (1422 FM Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1422D12F specifications
| Catalog number | 1422D12F |
| Manufacturer | Hammond Manufacturing |
| Series | Type 12 Mild Steel Two Door Floormount Enclosure (1422 FM Series) |
| Hammond description | N12 Dbl Door Floormount Encl w/panel, 60 x 60 x 12, Steel/Gray |
| Hammond short description | NEMA12 TWO DR ENCL.C/W MTG FT |
| Size H x W x D | 60.13 in x 60.06 in x 12.69 in (1,527 mm x 1,526 mm x 322 mm) |
| Shipping weight | 568 lb (257.64 kg) |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1422D12F. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1422D12F · Hammond 1422 FM series specification sheet (PDF) · BUL10020, MISC, ENCLOSURE DETAILS (PDF) · CE Declaration (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
