1422MD4 Hammond Type 12 Mild Steel Multi-Door Freestanding Enclosure
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

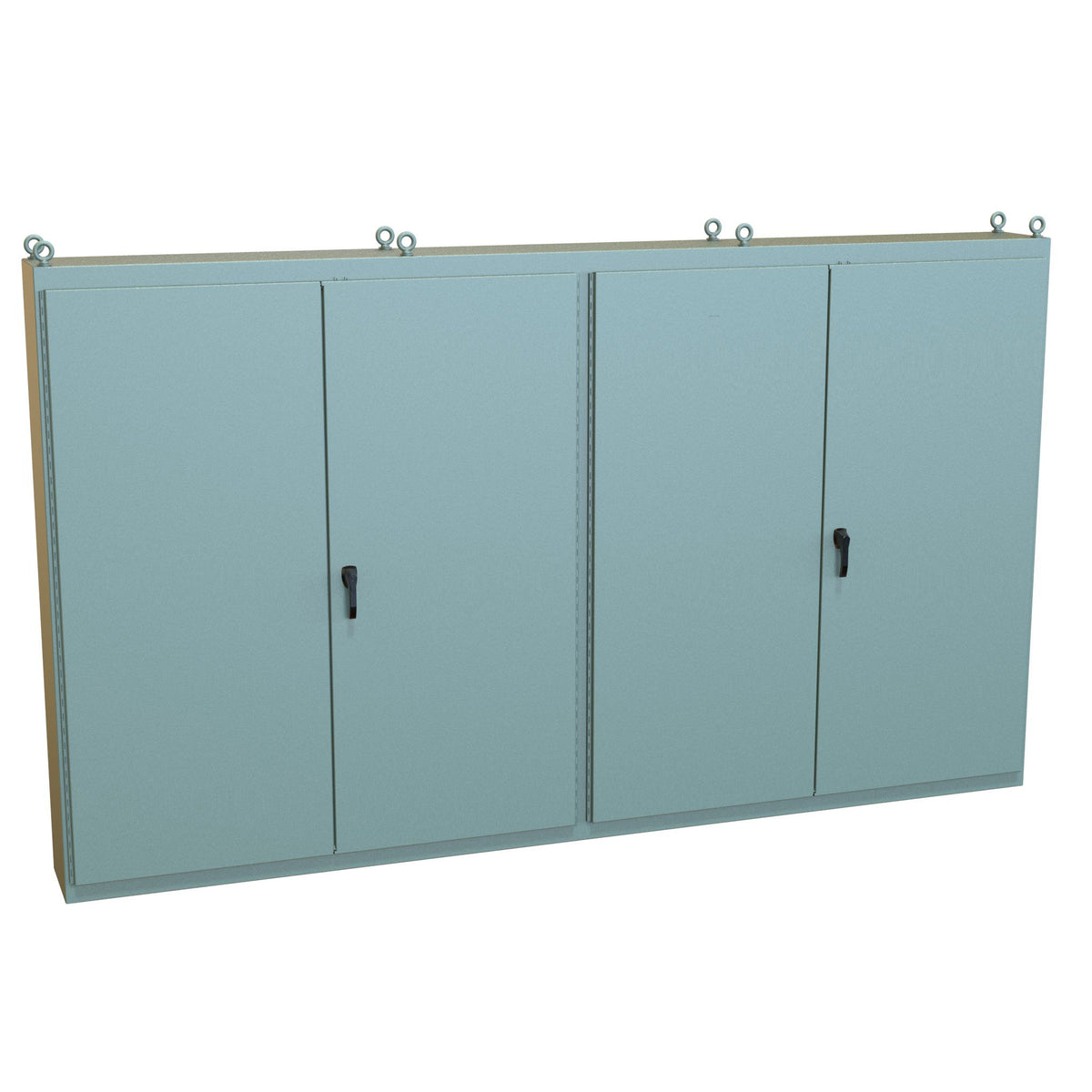

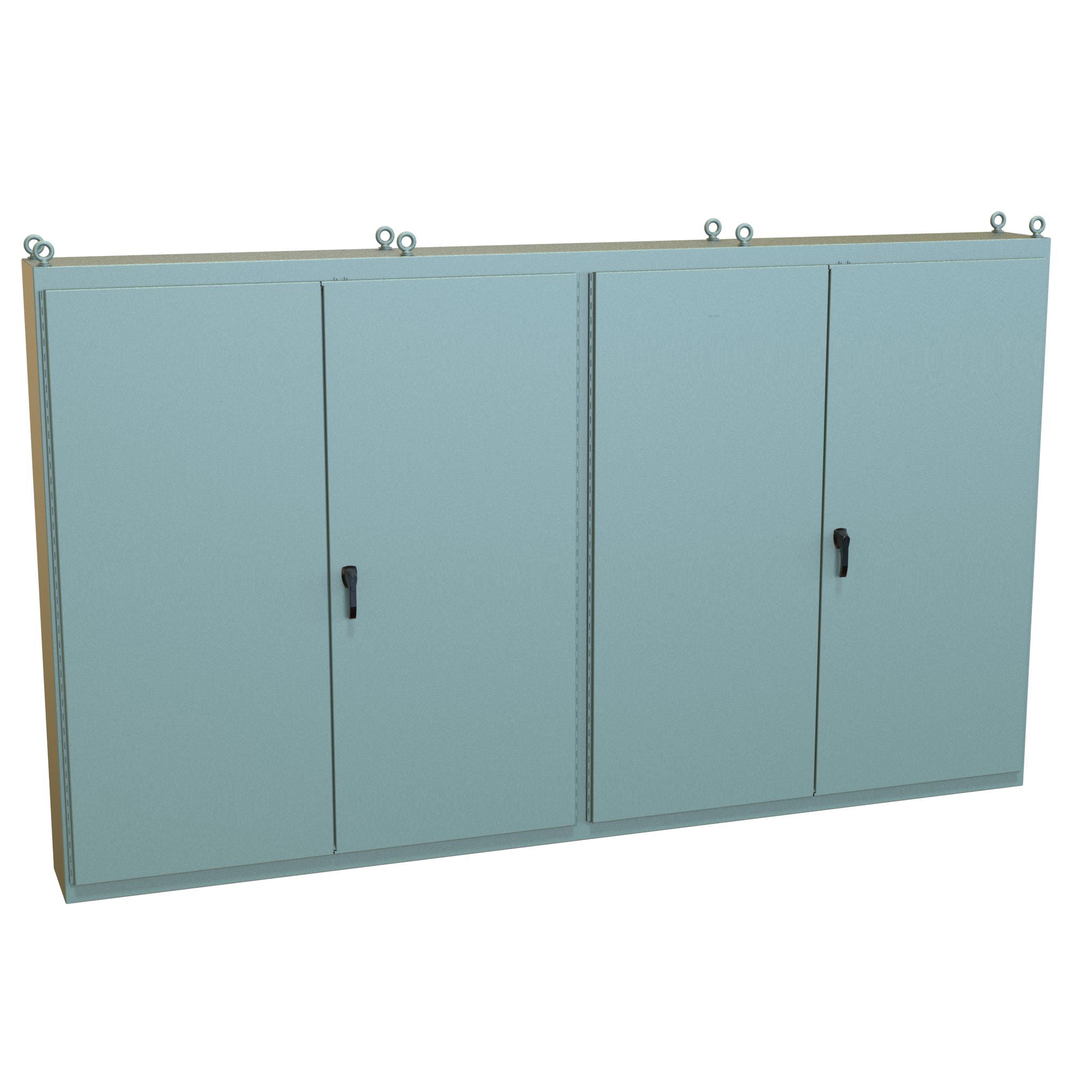

The Hammond Manufacturing 1422MD4 is listed by Hammond as N12 Multi Door Encl w/panel, 86.12 x 149 x 15.37, Steel/Gray, from the Type 12 Mild Steel Multi-Door Freestanding Enclosure (1422 MD Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1422MD4 specifications
| Catalog number | 1422MD4 |
| Manufacturer | Hammond Manufacturing |
| Series | Type 12 Mild Steel Multi-Door Freestanding Enclosure (1422 MD Series) |
| Hammond description | N12 Multi Door Encl w/panel, 86.12 x 149 x 15.37, Steel/Gray |
| Hammond short description | N12 MULT DR ENCL 86.1X149X14 |
| Size H x W x D | 86.12 in x 149.12 in x 14.12 in (2,187 mm x 3,788 mm x 359 mm) |
| Shipping weight | 2270 lbs (1,029.65 kg) |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1422MD4. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1422MD4 · Hammond 1422 MD series specification sheet (PDF) · BUL10020, MISC, ENCLOSURE DETAILS (PDF) · CE Declaration (PDF).
