1422N4B10FQT Hammond Type 4 Two Door Floormount Enclosure with Panel, Quarter Turn, 60 x 48 x 10 in, Steel
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

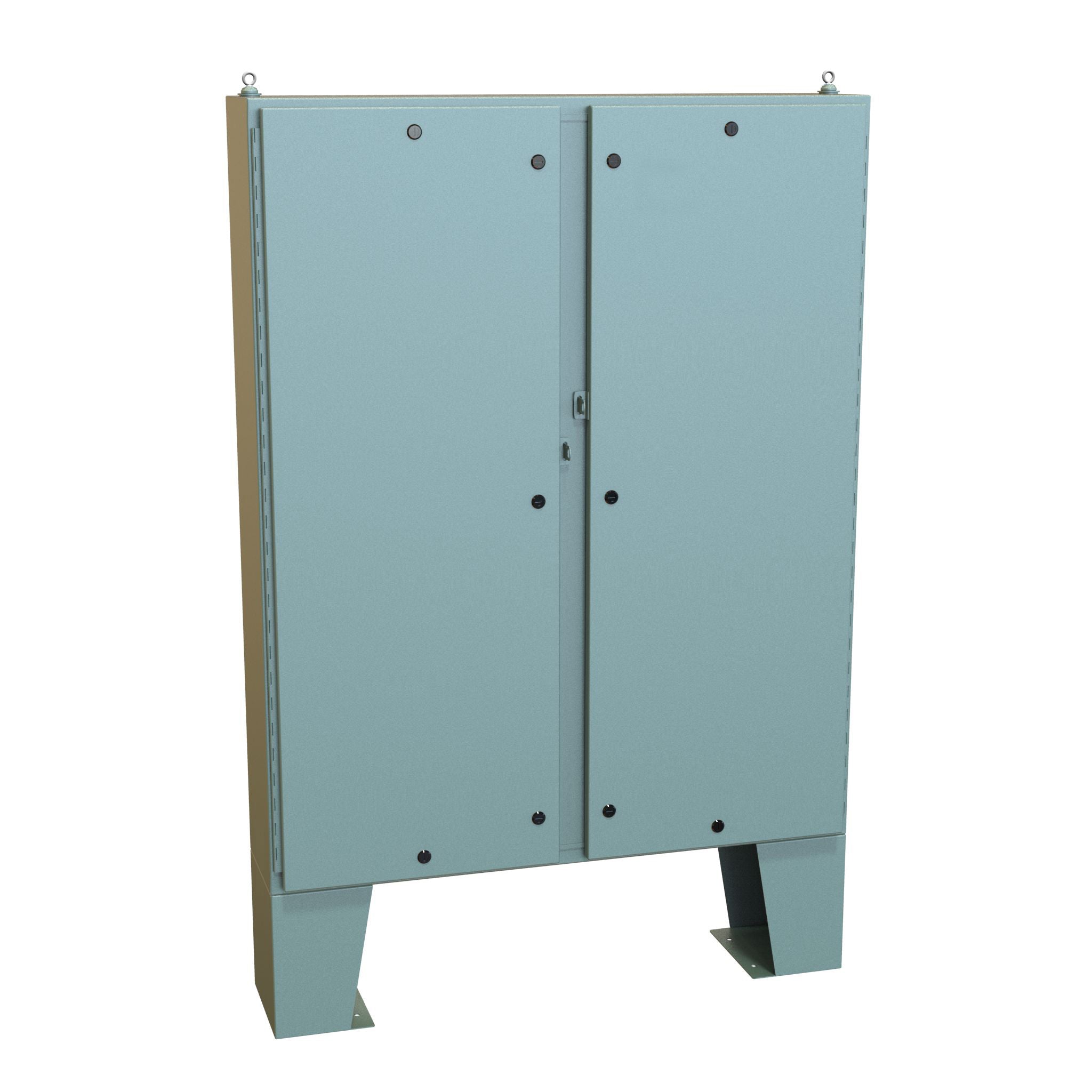

The Hammond Manufacturing 1422N4B10FQT is a Type 4 two door floormount enclosure with a mounting panel, 60 x 48 x 10 in nominal (H x W x D), mild steel with a gray finish, with quarter turn latches. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, any cutouts and any modifications, and the quote comes back the same business day.
Need the standard latch version? See 1422N4B10F.
Request a QuoteBook 15 Minutes
1422N4B10FQT specifications
| Catalog number | 1422N4B10FQT |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4 Mild Steel Two Door Floormount Enclosure (1422 N4 FM QT Series) |
| Hammond description | N4 Qtr Turn Dbl Door Floormount Encl w/panel - 60 x 48 x 10 - Steel/Gray |
| Nominal size | 60 x 48 x 10 in H x W x D |
| Outside size | 60.13 x 48.06 x 10.69 in (1527 x 1221 x 272 mm) H x W x D |
| Doors | Two |
| Latch | Quarter turn |
| Material and finish | Mild steel, gray finish |
| Type rating | NEMA Type 4 |
| Mounting | Floormount |
| Panel | Included |
| Weight | 460 lb (208.65 kg) |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1422N4B10FQT. Confirm against the current drawing before you cut or mount.
Hammond specification sheet for the 1422 N4 FM QT Series (PDF) and 1422N4B10FQT drawing (PDF).
Cross reference
Replacing a Hoffman, Saginaw or Wiegmann two door floormount enclosure? Send that part number and we will cross it to the matching Hammond catalog number. See the Hoffman to Hammond cross reference and the enclosure cross reference. Drives in a sealed box this size need cooling. Size it with the enclosure heat load calculator and the enclosure cooling guide. See all Hammond enclosures.
