1422N4F12F Hammond Type 4 Two Door Floormount Enclosure with Panel, 72 x 72 x 12 in, Steel
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

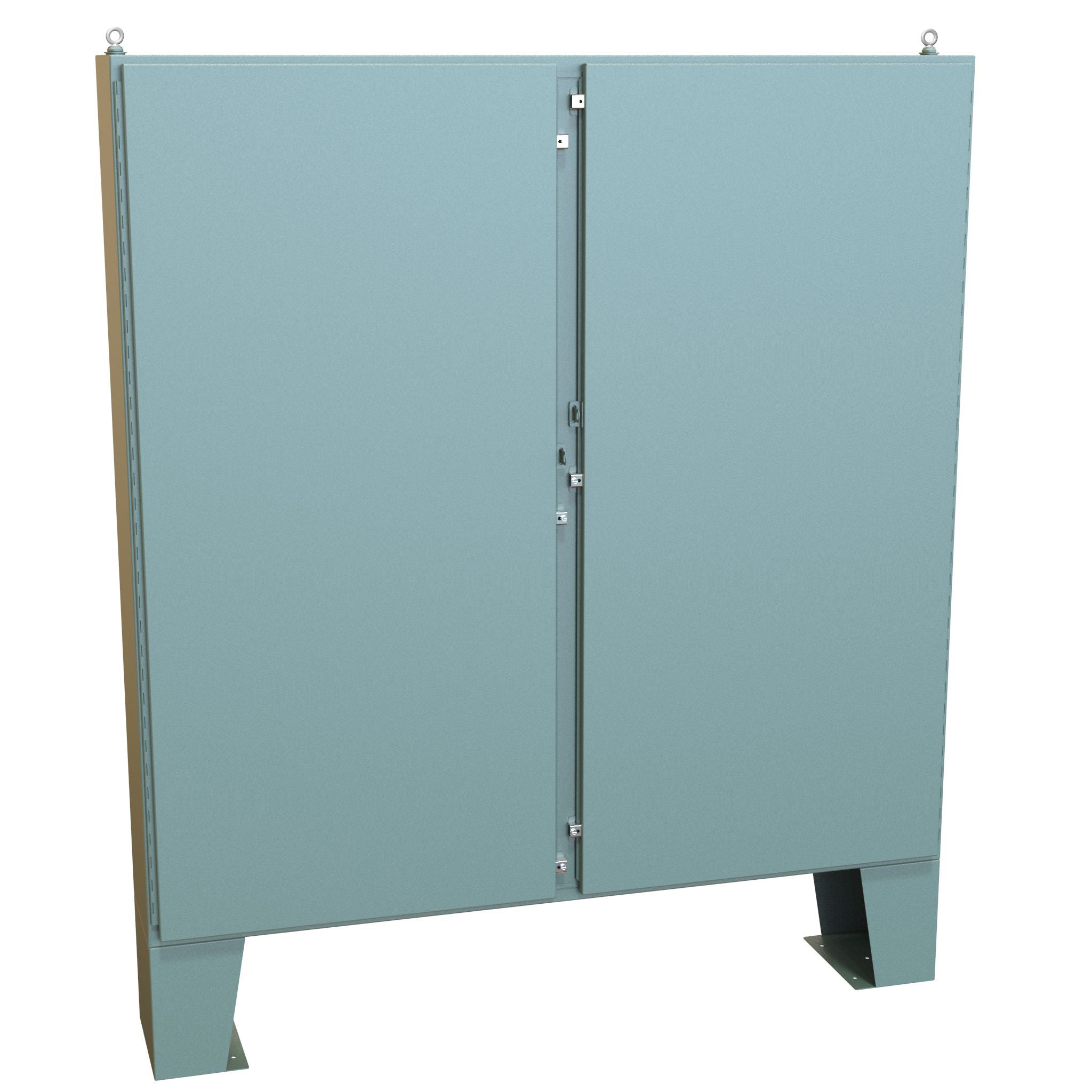

The Hammond Manufacturing 1422N4F12F is a Type 4 two door floormount enclosure with panel, 72.13 x 72.06 x 12.69 in H x W x D (1,832 x 1,830 x 322 mm), mild steel, gray finish. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any cutouts or modifications, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1422N4F12F specifications
| Catalog number | 1422N4F12F |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4 Mild Steel Two Door Floormount Enclosure (1422 N4 FM Series) |
| Hammond description | N4 Dbl Door Floormount Encl w/panel - 72 x 72 x 12 - Steel/Gray |
| Dimensions | 72.13 x 72.06 x 12.69 in H x W x D (1,832 x 1,830 x 322 mm) |
| Material and finish | Mild steel, gray finish |
| Type rating | NEMA Type 4 |
| UL file | E65324 |
| CSA certificate | LR21001 |
| Weight | 814 lb (369.22 kg) |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1422N4F12F. Confirm against the current drawing before you cut or mount.
Hammond specification sheet for the 1422 N4 FM Series (PDF).
Cross reference
These crosses come from Hammond's own cross reference for the 1422N4F12F. They cover Hoffman and Eaton B-Line. The Hammond box ships with its panel. The other boxes list the panel as a separate part, shown in the panel column. Check the drawing before you swap a box in an existing layout.
| Brand | Competitor part | Competitor panel | Hammond part |
|---|---|---|---|
| Hoffman | A74H72DULP | A72P72 | 1422N4F12F |
| Eaton B-Line | 747212-4FD | AW7272P | 1422N4F12F |
Replacing a Hoffman, Saginaw or Wiegmann enclosure? Send that part number and we will cross it to the matching Hammond catalog number. See the Hoffman to Hammond cross reference and the enclosure cross reference. Sealing heat-producing gear inside? Size the cooling with the enclosure heat load calculator.
