1422N4S16B12FQT Hammond Type 4X Two Door Floormount Enclosure with Panel, Quarter Turn, 60 x 48 x 12 in, 316 Stainless
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

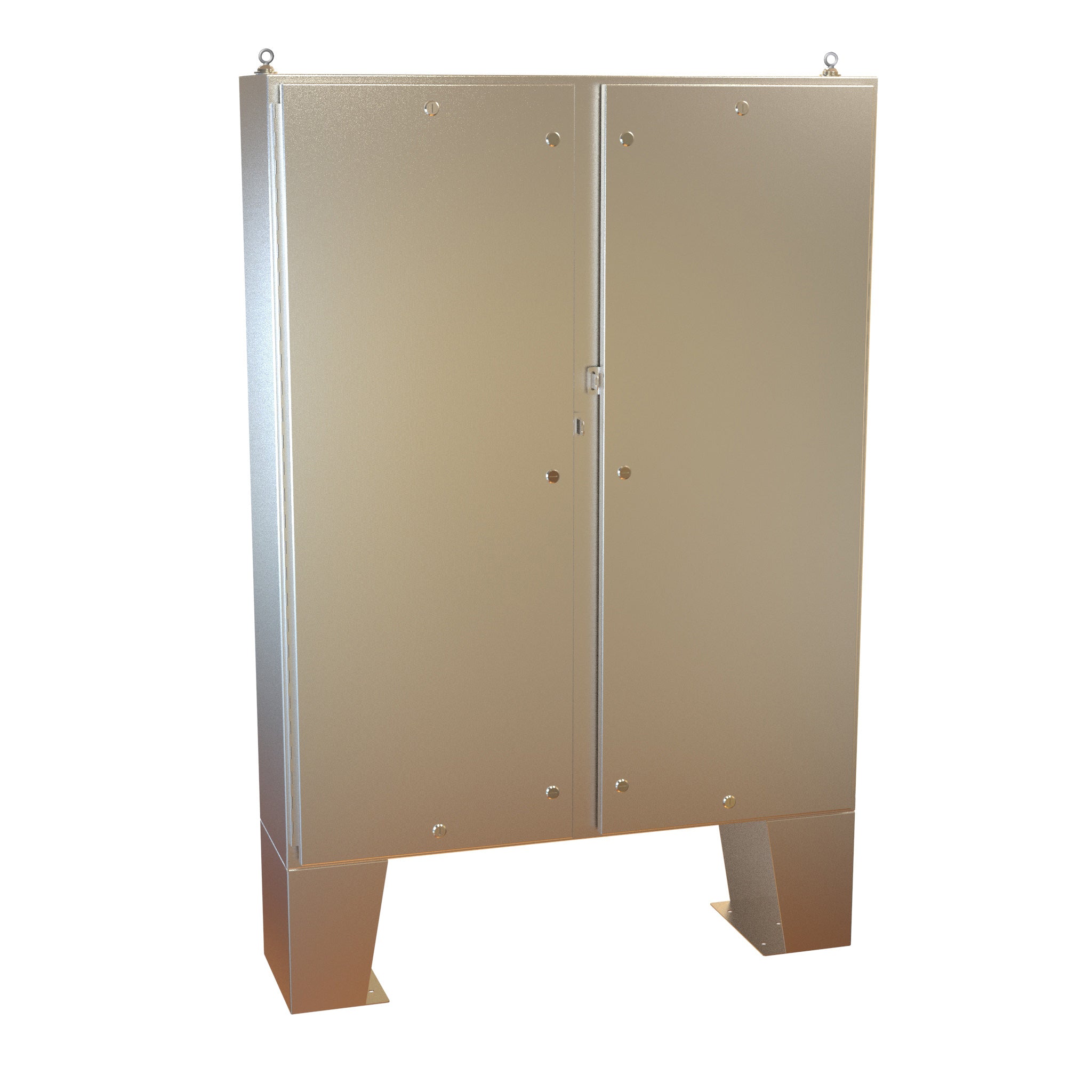

The Hammond Manufacturing 1422N4S16B12FQT is a Type 4X two door floormount enclosure with a mounting panel, 60 x 48 x 12 in nominal (H x W x D), 316 stainless steel, with quarter turn latches. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, any cutouts and any modifications, and the quote comes back the same business day.
Need the standard latch version? See 1422N4S16B12F.
Request a QuoteBook 15 Minutes
1422N4S16B12FQT specifications
| Catalog number | 1422N4S16B12FQT |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4X Stainless Steel Two Door Floormount Enclosure (1422 N4 QT SS Series) |
| Hammond description | N4X Qtr Turn Dbl Door Floormount Encl w/panel - 60 x 48 x 12 - 316 SS |
| Nominal size | 60 x 48 x 12 in H x W x D |
| Outside size | 60.13 x 48.06 x 12.69 in (1527 x 1221 x 322 mm) H x W x D |
| Doors | Two |
| Latch | Quarter turn |
| Material and finish | 316 stainless steel |
| Type rating | NEMA Type 4X |
| Mounting | Floormount |
| Panel | Included |
| Weight | 476 lb (215.91 kg) |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1422N4S16B12FQT. Confirm against the current drawing before you cut or mount.
Hammond specification sheet for the 1422 N4 QT SS Series (PDF) and 1422N4S16B12FQT drawing (PDF).
Cross reference
Replacing a Hoffman, Saginaw or Wiegmann two door floormount enclosure? Send that part number and we will cross it to the matching Hammond catalog number. See the Hoffman to Hammond cross reference and the enclosure cross reference. Drives in a sealed box this size need cooling. Size it with the enclosure heat load calculator and the enclosure cooling guide. See all Hammond enclosures.
