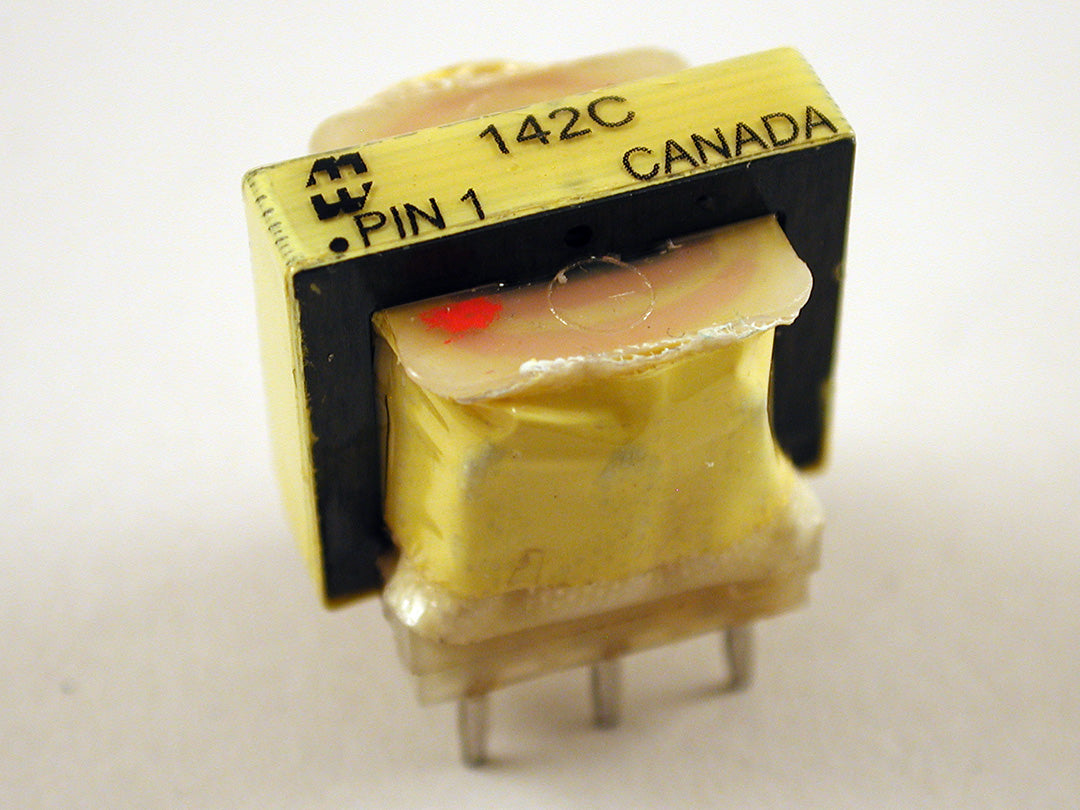

The Hammond Manufacturing 142C is listed by Hammond as audio transformer, open frame PC board mount, 15K C.T.:15K C.T., 142 Series, from the Audio Open Frame (142 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
142C specifications
| Catalog number | 142C |
| Manufacturer | Hammond Manufacturing |
| Series | Audio Open Frame (142 Series) |
| Hammond description | Audio transformer, open frame PC board mount, 15K C.T.:15K C.T., 142 Series |
| Hammond short description | AUDIO TX PC MOUNT |
| Shipping weight | 0.08 lb (0.04 kg) |
| Primary Nominal Impedance (ohms) | 15K C.T. |
| Secondary Nominal Impedance (ohms) | 15K C.T. |
| Max. Pri. D.C. Current (ma.) | 4 |
| Primary D.C. Resistance (Ohms) | 1020 |
| Seondary D.C. Resistance (ohms) | 1390 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 142C. Confirm against the current Hammond drawing before you design it in.
