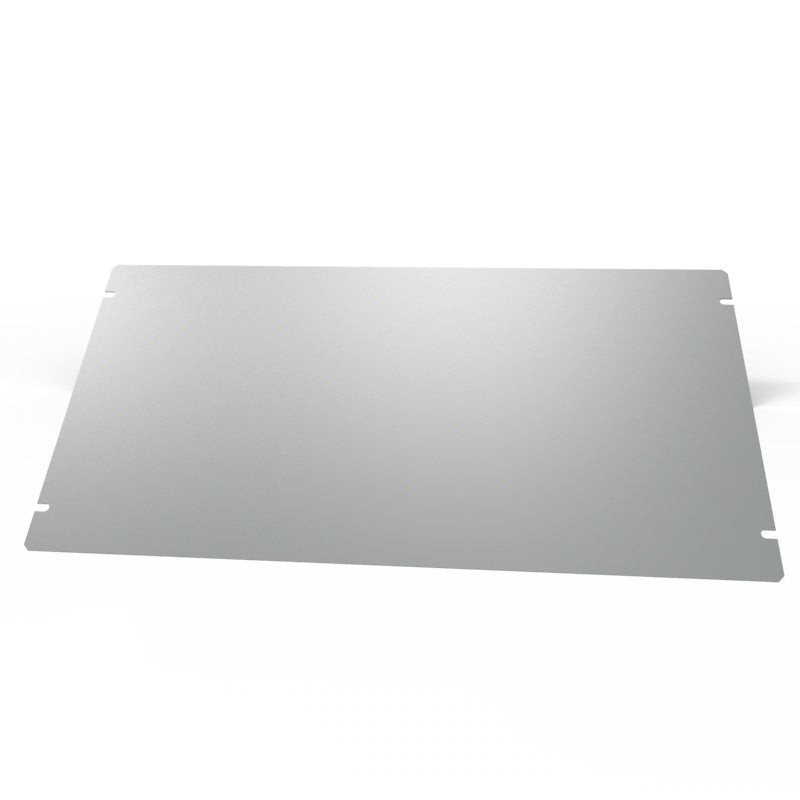

1431-26 Hammond Steel Chassis, Bottom Plate, 16 x 8 x 0.04 in, Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1431-26 is listed by Hammond as bottom plate for steel chassis. ASA 61 smooth grey., from the Steel Chassis (1441 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1431-26 specifications
| Catalog number | 1431-26 |
| Manufacturer | Hammond Manufacturing |
| Series | Steel Chassis (1441 Series) |
| Hammond description | Bottom plate for steel chassis. ASA 61 smooth grey. |
| Hammond short description | STEEL CHASSIS COVER 16 X 8 |
| Size L x W x H | 16 x 8 x 0.04 in (406 x 203 x 1 mm) |
| Shipping weight | 1.27 lb (0.58 kg) |
| Material | Steel |
| Color | Gray |
| Product Category | Chassis |
| Type | Bottom Plate |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1431-26. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1431-26 · Hammond 1441 series specification sheet (PDF).
