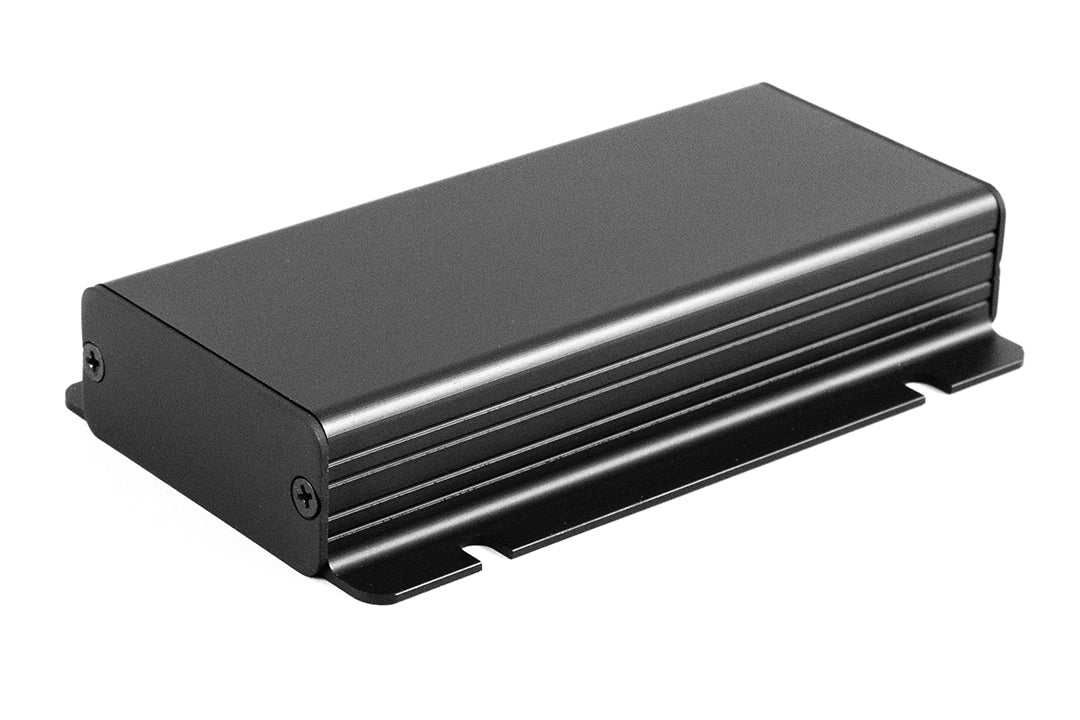

1455CF1201BK Hammond Extruded Aluminum Enclosure with Integral Flanges, 4.75 x 2.13 x 0.91 in, IP54, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1455CF1201BK is an extruded aluminum box with integral mounting flanges, from the 1455F series. It is 4.75 x 2.13 x 0.91 in L x W x H (121 x 54 x 23 mm) with a black finish and an IP54 rating. It takes a PC board up to 119 x 50 mm. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any holes, cutouts or printing, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1455CF1201BK specifications
| Catalog number | 1455CF1201BK |
| Manufacturer | Hammond Manufacturing |
| Series | Extruded Aluminum Enclosures with Integrated Flanges (1455F Series) |
| Hammond description | extruded aluminum enclosure w/ integral flanges |
| Hammond short description | 120x54x23mm FLANGED ENCL BLACK |
| Type | PC board enclosure |
| Outside size, L x W x H | 4.75 x 2.13 x 0.91 in (121 x 54 x 23 mm) |
| Material | Aluminum (extruded) |
| Color | Black |
| IP rating | IP54 |
| Max. PC board length | 119 mm |
| Max. PC board width | 50 mm |
| Shipping weight | 0.22 lb (0.10 kg) |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1455CF1201BK. Confirm against the current drawing before you drill or mount.
Hammond product page for 1455CF1201BK.
Same size in other finishes: 1455CF1201.
Holes, cutouts and printing
Send a drawing or a marked-up sketch of the end panels with the part number. We check what Hammond can machine or print on this part and quote the box finished, so it shows up ready to load.
