1455CF801 Hammond Extruded Aluminum Enclosure with Integral Flanges, 3.15 x 2.13 x 0.91 in, IP54, Clear Anodized
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

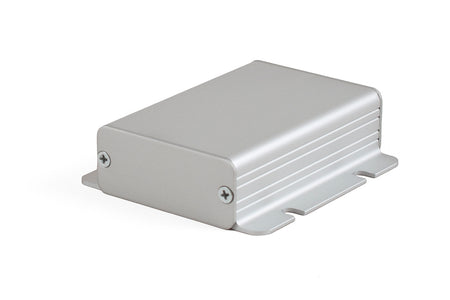

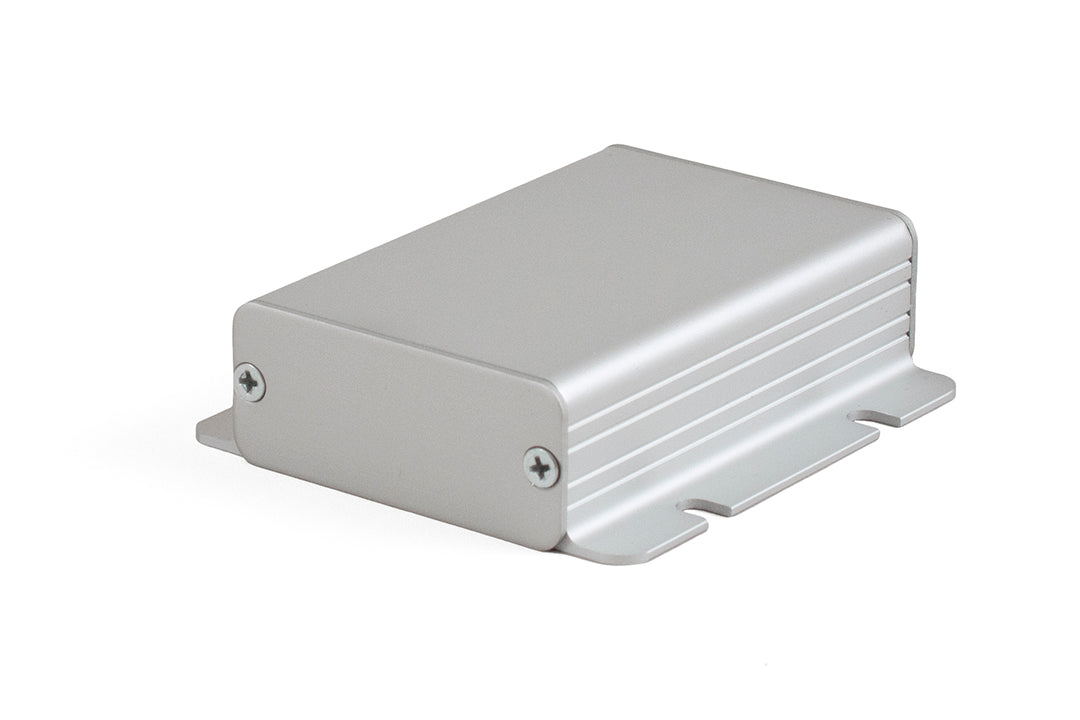

The Hammond Manufacturing 1455CF801 is an extruded aluminum box with integral mounting flanges, from the 1455F series. It is 3.15 x 2.13 x 0.91 in L x W x H (80 x 54 x 23 mm) with a clear anodized finish and an IP54 rating. It takes a PC board up to 79 x 50 mm. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any holes, cutouts or printing, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1455CF801 specifications
| Catalog number | 1455CF801 |
| Manufacturer | Hammond Manufacturing |
| Series | Extruded Aluminum Enclosures with Integrated Flanges (1455F Series) |
| Hammond description | extruded aluminum enclosure w/ integral flanges |
| Hammond short description | 80x54x23mm FLANGED ENCL CLEAR |
| Type | PC board enclosure |
| Outside size, L x W x H | 3.15 x 2.13 x 0.91 in (80 x 54 x 23 mm) |
| Material | Aluminum (extruded) |
| Color | Clear (Anodize) |
| IP rating | IP54 |
| Max. PC board length | 79 mm |
| Max. PC board width | 50 mm |
| Shipping weight | 0.18 lb (0.08 kg) |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1455CF801. Confirm against the current drawing before you drill or mount.
Hammond product page for 1455CF801.
Same size in other finishes: 1455CF801BK.
Holes, cutouts and printing
Send a drawing or a marked-up sketch of the end panels with the part number. We check what Hammond can machine or print on this part and quote the box finished, so it shows up ready to load.
