1455J1201 Hammond Extruded Aluminum Enclosure with Metal End Panels, 4.72 x 3.07 x 1.06 in, IP54, Clear Anodized
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

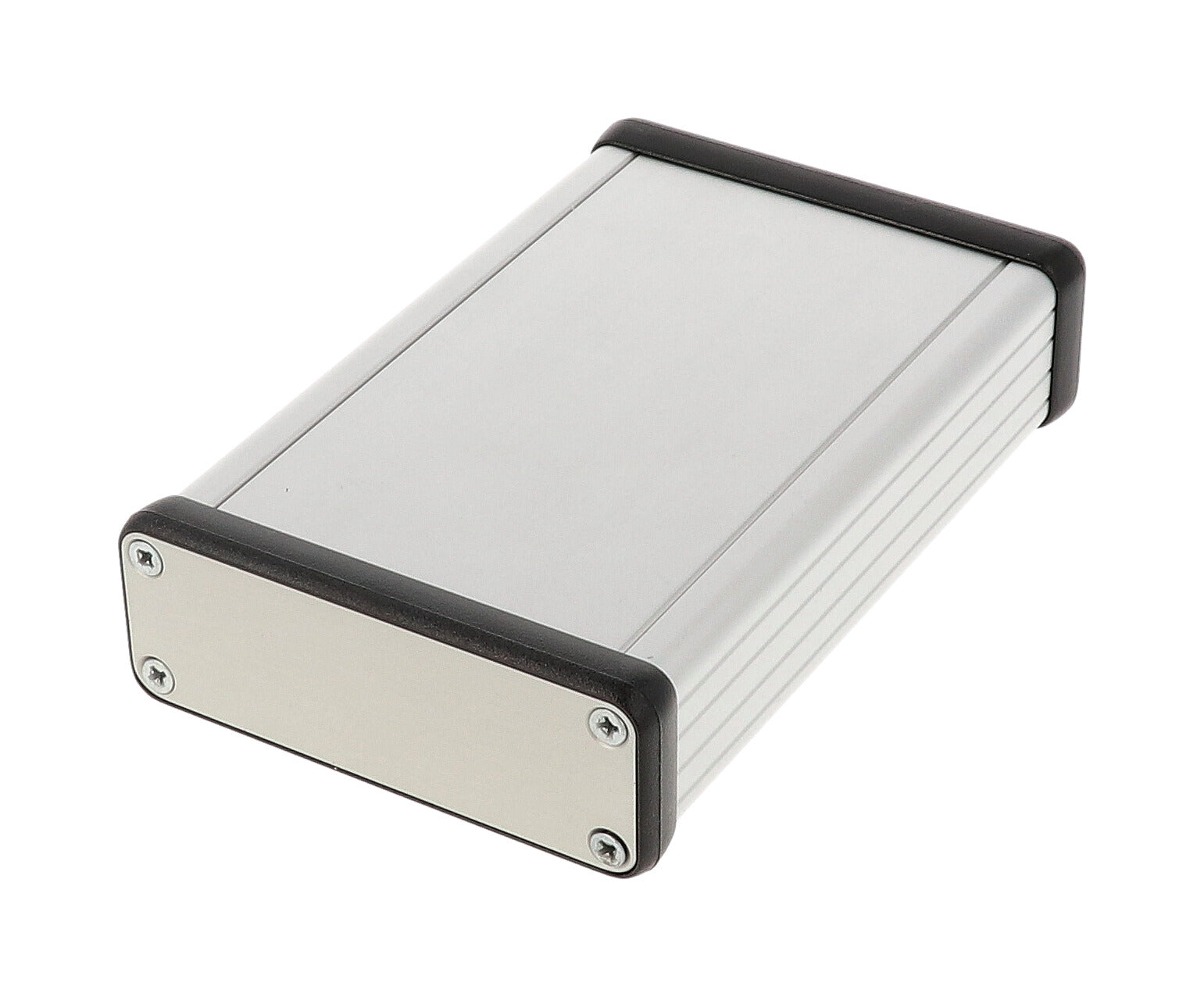

The Hammond Manufacturing 1455J1201 is an extruded aluminum PC board box with metal end panels, from the 1455 series. It is 4.72 x 3.07 x 1.06 in L x W x H (120 x 78 x 27 mm) with a clear anodized finish and an IP54 rating. It takes a PC board up to 119 x 74 mm. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any holes, cutouts or printing, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1455J1201 specifications
| Catalog number | 1455J1201 |
| Manufacturer | Hammond Manufacturing |
| Series | Extruded Aluminum Enclosures (1455 Series) |
| Hammond description | extruded aluminum enclosure w/ metal end panels |
| Hammond short description | 78 X 27 X 120MM EXTRUDED ENCL |
| Type | PC board enclosure |
| End panels | Metal |
| Outside size, L x W x H | 4.72 x 3.07 x 1.06 in (120 x 78 x 27 mm) |
| Material | Aluminum (extruded) |
| Color | Clear (Anodize) |
| IP rating | IP54 |
| Max. PC board length | 119 mm |
| Max. PC board width | 74 mm |
| Shipping weight | 0.33 lb (0.15 kg) |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1455J1201. Confirm against the current drawing before you drill or mount.
Hammond product page for 1455J1201.
Same size in other finishes: 1455J1201BK, 1455J1201BU, 1455J1201RD.
Holes, cutouts and printing
Send a drawing or a marked-up sketch of the end panels with the part number. We check what Hammond can machine or print on this part and quote the box finished, so it shows up ready to load.
