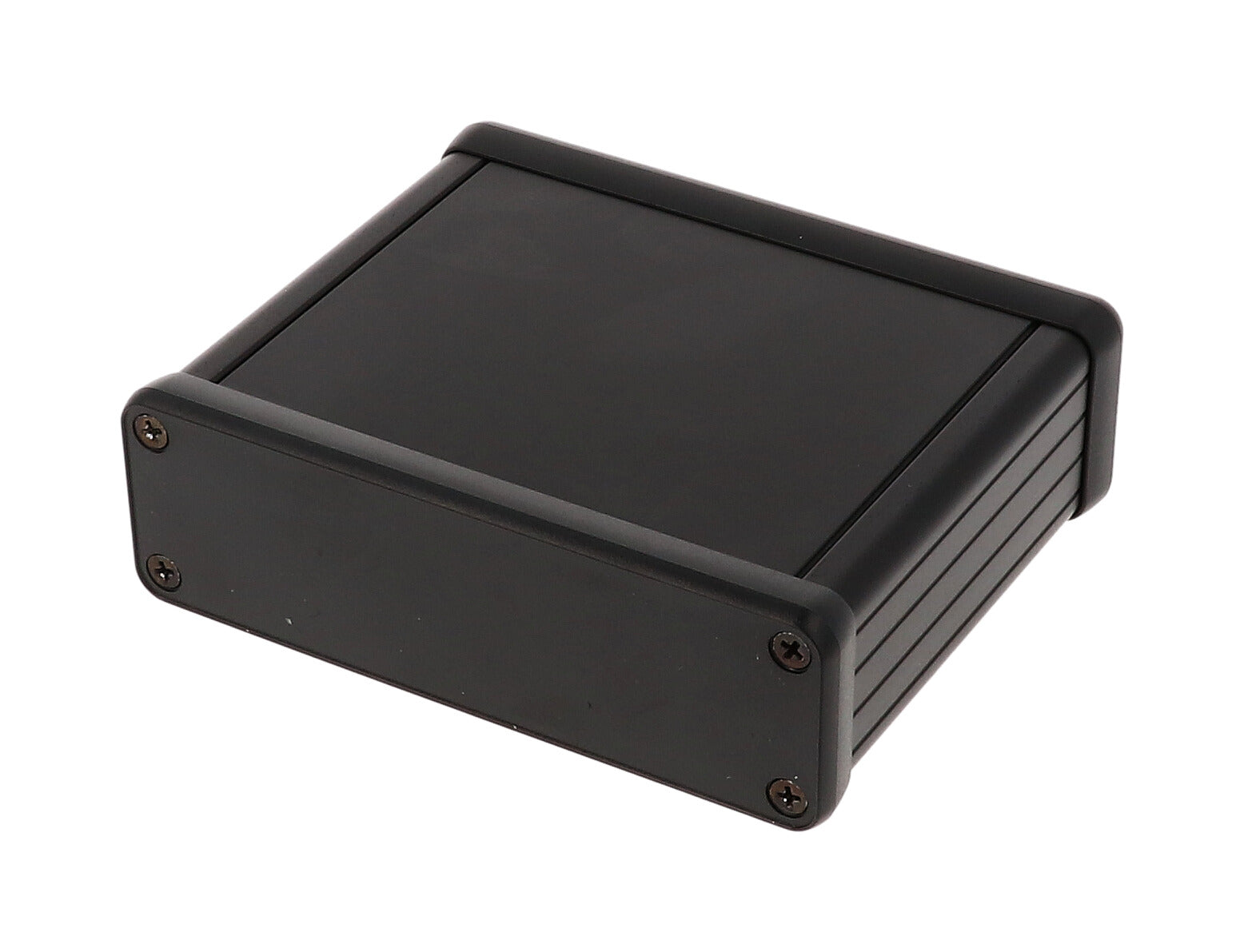

1455L802BK Hammond Extruded Aluminum Enclosure, 3.15 x 4.05 x 1.2 in, IP54, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1455L802BK is listed by Hammond as black extruded aluminum enclosure w/ plastic end panels, from the Extruded Aluminum Enclosures (1455 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1455L802BK specifications
| Catalog number | 1455L802BK |
| Manufacturer | Hammond Manufacturing |
| Series | Extruded Aluminum Enclosures (1455 Series) |
| Hammond description | black extruded aluminum enclosure w/ plastic end panels |
| Hammond short description | 103 X 30.5 X 80MM ALM EXTRUSN |
| Size L x W x H | 3.15 x 4.05 x 1.2 in (80 x 103 x 30 mm) |
| Shipping weight | 0.4 lb (0.18 kg) |
| Material | Aluminum (Extruded) |
| Color | Black |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | PC Board Enclosure |
| Max. P.C. Board Length (mm) | 79 |
| Max. P.C. Board Width (mm) | 99.5 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1455L802BK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1455L802BK · Hammond 1455 series specification sheet (PDF).
