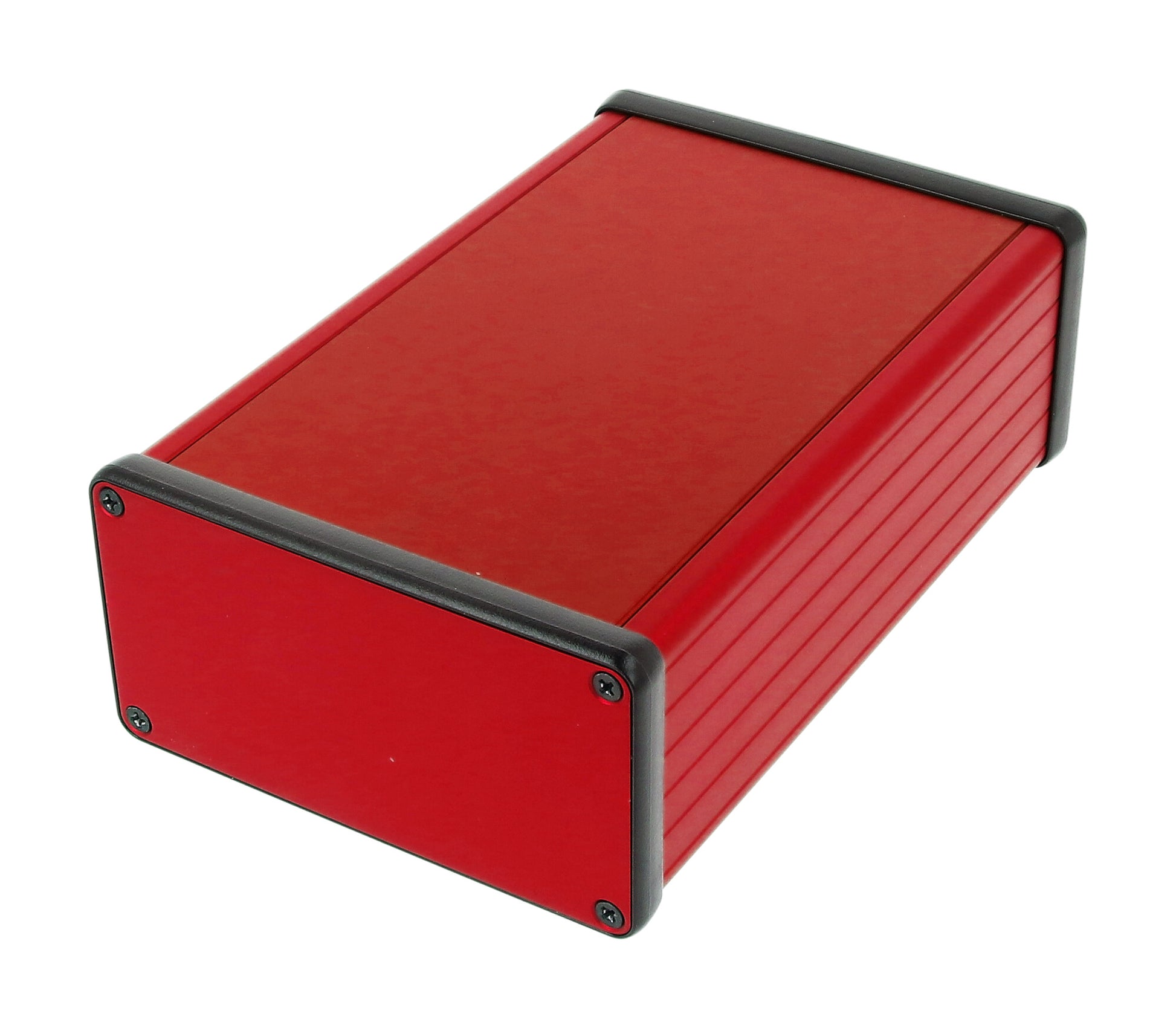

1455N1601RD Hammond Extruded Aluminum Enclosure, 6.3 x 4.06 x 2.09 in, IP54, Red
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1455N1601RD is listed by Hammond as red extruded aluminum enclosure w/ metal end panels, from the Extruded Aluminum Enclosures (1455 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1455N1601RD specifications
| Catalog number | 1455N1601RD |
| Manufacturer | Hammond Manufacturing |
| Series | Extruded Aluminum Enclosures (1455 Series) |
| Hammond description | red extruded aluminum enclosure w/ metal end panels |
| Hammond short description | RED 160 X 103 X 53MM ALM ENCL |
| Size L x W x H | 6.3 x 4.06 x 2.09 in (160 x 103 x 53 mm) |
| Shipping weight | 1 lb (0.45 kg) |
| Material | Aluminum (Extruded) |
| Color | Red |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | PC Board Enclosure |
| Max. P.C. Board Length (mm) | 159 |
| Max. P.C. Board Width (mm) | 99 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1455N1601RD. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1455N1601RD · Hammond 1455 series specification sheet (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
