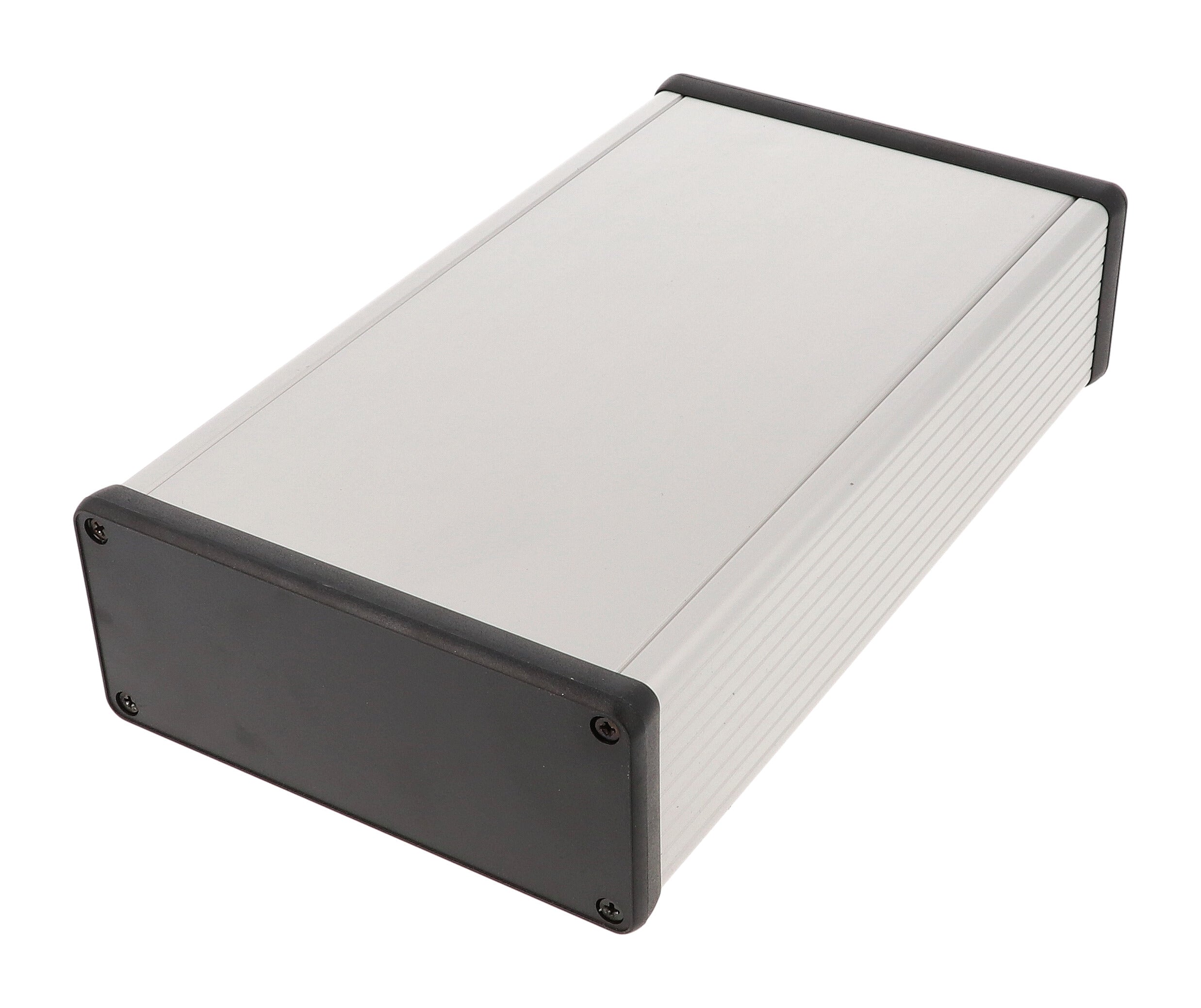

1455Q2202 Hammond Extruded Aluminum Enclosure, 8.66 x 4.92 x 2.05 in, IP54, Clear (Anodize)
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1455Q2202 is listed by Hammond as extruded aluminum enclosure w/ plastic end panels, from the Extruded Aluminum Enclosures (1455 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1455Q2202 specifications
| Catalog number | 1455Q2202 |
| Manufacturer | Hammond Manufacturing |
| Series | Extruded Aluminum Enclosures (1455 Series) |
| Hammond description | extruded aluminum enclosure w/ plastic end panels |
| Hammond short description | 220X125X51.5MM EXTRUDED ENCL |
| Size L x W x H | 8.66 x 4.92 x 2.05 in (220 x 125 x 52 mm) |
| Shipping weight | 1.22 lb (0.55 kg) |
| Material | Aluminum (Extruded) |
| Color | Clear (Anodize) |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | PC Board Enclosure |
| Max. P.C. Board Length (mm) | 219 |
| Max. P.C. Board Width (mm) | 119.5 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1455Q2202. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1455Q2202 · Hammond 1455 series specification sheet (PDF).
