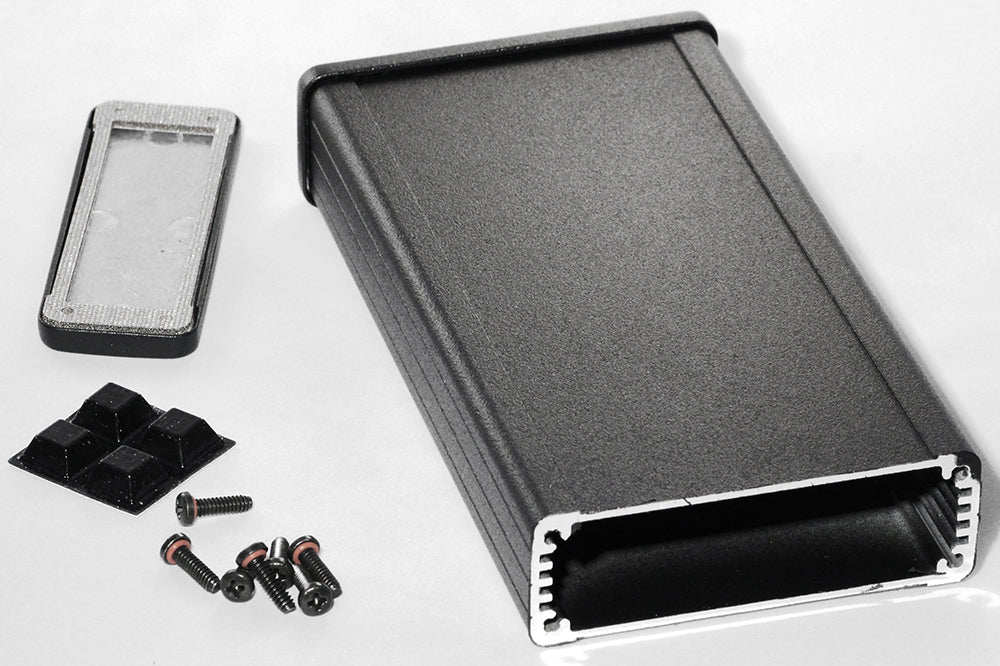

1457J1601EBK Hammond EMI/RFI Shielded Extruded Aluminum Enclosure, 6.3 x 3.3 x 1.12 in, IP54, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1457J1601EBK is listed by Hammond as black EMI/RFI shielded extruded aluminum enclosure 6.30x3.30x1.12, from the EMI/RFI Shielded Extruded Aluminum Enclosures (1457-EMI Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1457J1601EBK specifications
| Catalog number | 1457J1601EBK |
| Manufacturer | Hammond Manufacturing |
| Series | EMI/RFI Shielded Extruded Aluminum Enclosures (1457-EMI Series) |
| Hammond description | black EMI/RFI shielded extruded aluminum enclosure 6.30x3.30x1.12 |
| Hammond short description | 1457J 160mm ENCL BK EMI VER1 |
| Size L x W x H | 6.3 x 3.3 x 1.12 in (160 x 84 x 28 mm) |
| Shipping weight | 0.25 lb (0.11 kg) |
| Material | Aluminum (Extruded) |
| Color | Black |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | EMI/ RFI Shielded |
| Max. P.C. Board Length (mm) | 159 |
| Max. P.C. Board Width (mm) | 79 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1457J1601EBK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1457J1601EBK · Hammond 1457-EMI series specification sheet (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
