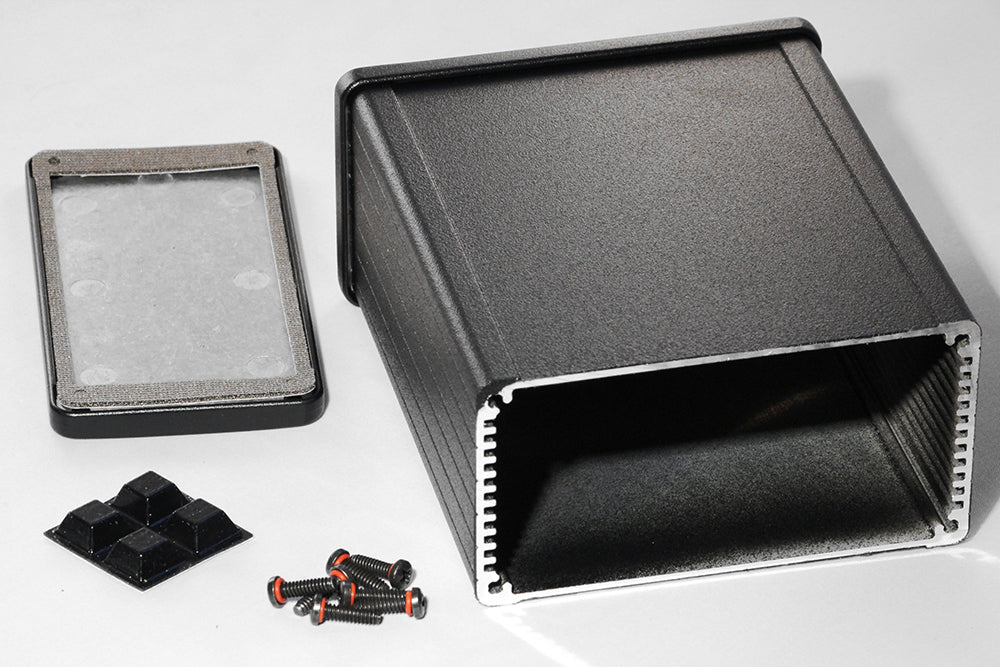

1457N1201EBK Hammond EMI/RFI Shielded Extruded Aluminum Enclosure, 4.73 x 4.09 x 2.15 in, IP54, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1457N1201EBK is listed by Hammond as black EMI/RFI shielded extruded aluminum enclosure 4.73x4.09x2.15, from the EMI/RFI Shielded Extruded Aluminum Enclosures (1457-EMI Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1457N1201EBK specifications
| Catalog number | 1457N1201EBK |
| Manufacturer | Hammond Manufacturing |
| Series | EMI/RFI Shielded Extruded Aluminum Enclosures (1457-EMI Series) |
| Hammond description | black EMI/RFI shielded extruded aluminum enclosure 4.73x4.09x2.15 |
| Hammond short description | 1457N 120mm ENCL BK EMI VER1 |
| Size L x W x H | 4.73 x 4.09 x 2.15 in (120 x 104 x 55 mm) |
| Shipping weight | 0.69 lb (0.31 kg) |
| Material | Aluminum (Extruded) |
| Color | Black |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | EMI/ RFI Shielded |
| Max. P.C. Board Length (mm) | 119 |
| Max. P.C. Board Width (mm) | 99 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1457N1201EBK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1457N1201EBK · Hammond 1457-EMI series specification sheet (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
