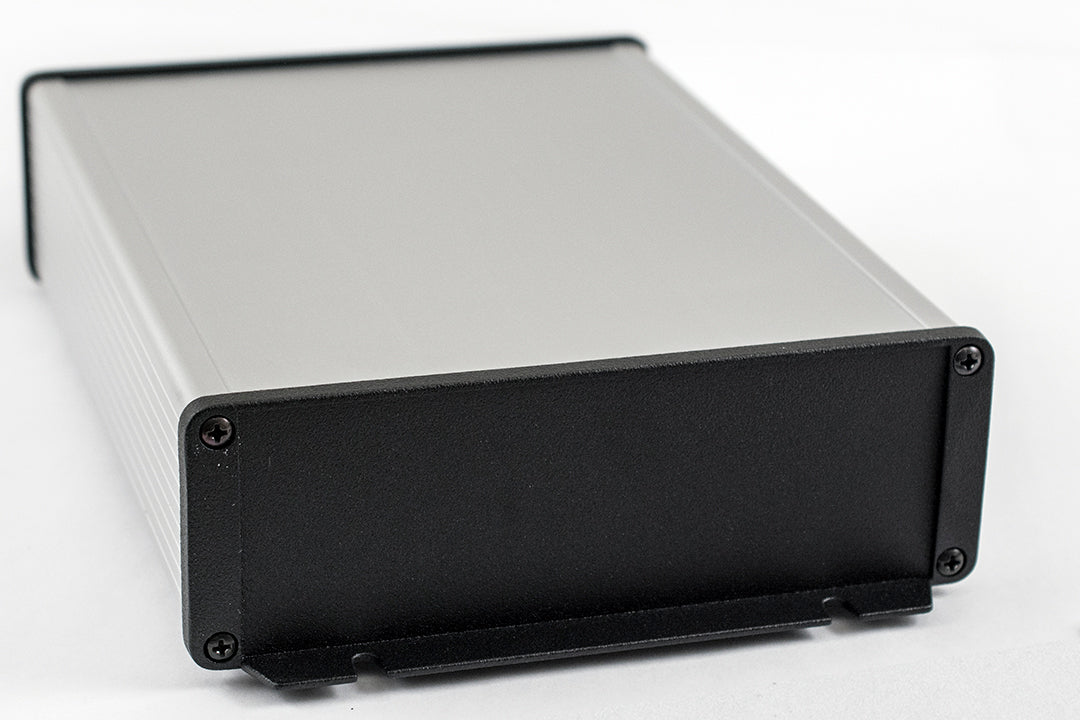

1457T2202E Hammond EMI/RFI Shielded Extruded Aluminum Enclosure, 8.66 x 6.51 x 2.15 in, IP54, Clear (Anodize)
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1457T2202E is listed by Hammond as 1457T 220mm ENCL CLR EMI VER2, from the EMI/RFI Shielded Extruded Aluminum Enclosures (1457-EMI Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1457T2202E specifications
| Catalog number | 1457T2202E |
| Manufacturer | Hammond Manufacturing |
| Series | EMI/RFI Shielded Extruded Aluminum Enclosures (1457-EMI Series) |
| Hammond short description | 1457T 220mm ENCL CLR EMI VER2 |
| Size L x W x H | 8.66 x 6.51 x 2.15 in (220 x 165 x 55 mm) |
| Shipping weight | 1.74 lb (0.79 kg) |
| Material | Aluminum (Extruded) |
| Color | Clear (Anodize) |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | EMI/ RFI Shielded |
| Max. P.C. Board Length (mm) | 219 |
| Max. P.C. Board Width (mm) | 159 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1457T2202E. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1457T2202E · Hammond 1457-EMI series specification sheet (PDF).
