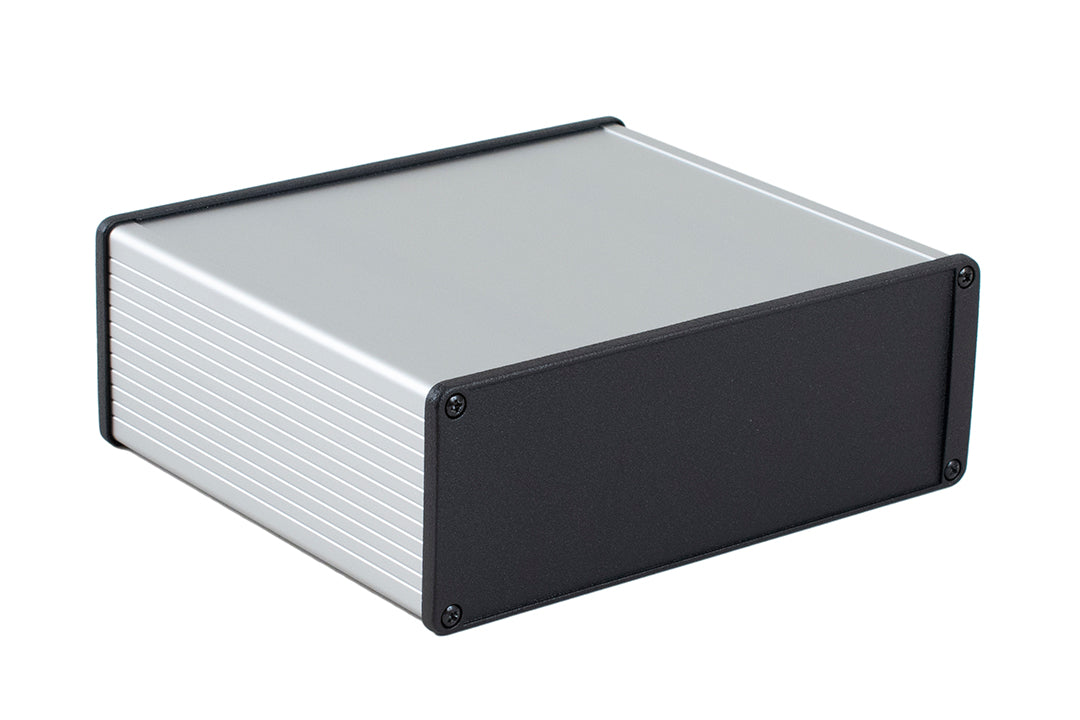

1457U1601 Hammond Watertight Extruded Aluminum Enclosure, 6.3 x 7.52 x 2.68 in, IP65, Clear (Anodize)
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1457U1601 is listed by Hammond as enclosure, extruded aluminum, 7.52 x 2.68 x 6.3, non-flanged end panels, 1457 Series, from the Watertight Extruded Aluminum Enclosures (1457 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1457U1601 specifications
| Catalog number | 1457U1601 |
| Manufacturer | Hammond Manufacturing |
| Series | Watertight Extruded Aluminum Enclosures (1457 Series) |
| Hammond description | Enclosure, extruded aluminum, 7.52 x 2.68 x 6.3, non-flanged end panels, 1457 Series |
| Hammond short description | 1457U 160MM ENCL CLEAR ANOD V1 |
| Size L x W x H | 6.3 x 7.52 x 2.68 in (160 x 191 x 68 mm) |
| Shipping weight | 1.5 lb (0.68 kg) |
| Material | Aluminum (Extruded) |
| Color | Clear (Anodize) |
| IP Rating | IP65 |
| Product Category | Enclosures |
| Type | PC Board Enclosures |
| Max. P.C. Board Length (mm) | 159 |
| Max. P.C. Board Width (mm) | 185 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1457U1601. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1457U1601 · Hammond 1457 series specification sheet (PDF).
