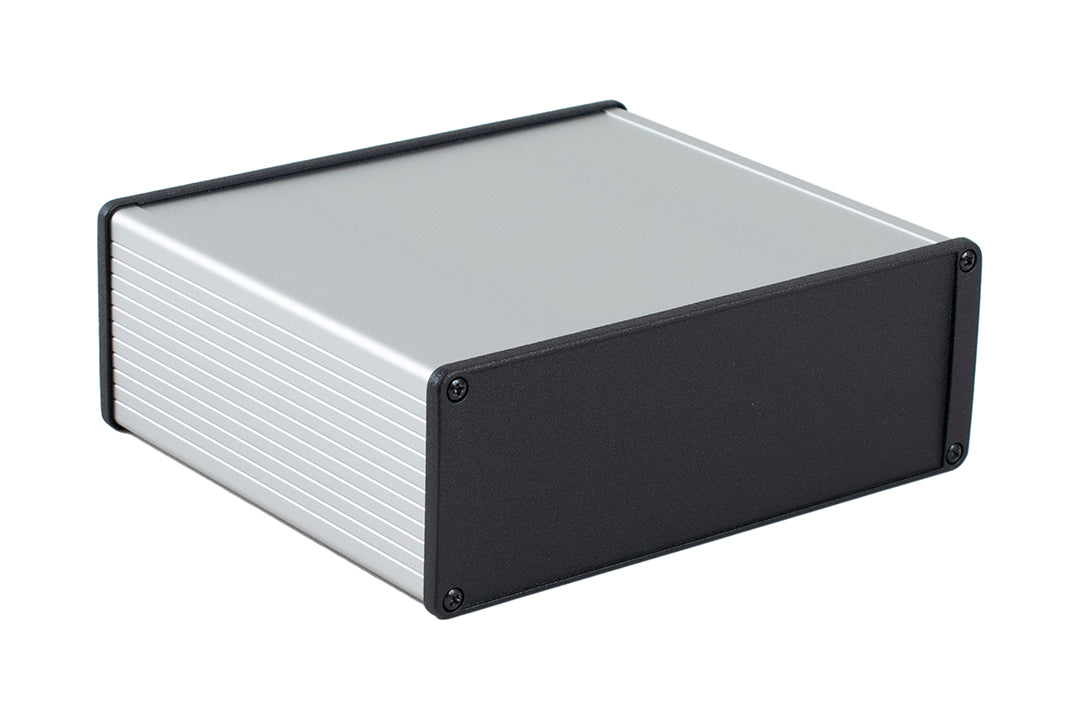

1457U1601E Hammond EMI/RFI Shielded Extruded Aluminum Enclosure, 6.3 x 7.52 x 2.68 in, IP54, Clear (Anodize)
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1457U1601E is listed by Hammond as enclosure, extruded aluminum, 7.52 x 2.68 x 6.3, non-flanged end panels, 1457-EMI Series, from the EMI/RFI Shielded Extruded Aluminum Enclosures (1457-EMI Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1457U1601E specifications
| Catalog number | 1457U1601E |
| Manufacturer | Hammond Manufacturing |
| Series | EMI/RFI Shielded Extruded Aluminum Enclosures (1457-EMI Series) |
| Hammond description | Enclosure, extruded aluminum, 7.52 x 2.68 x 6.3, non-flanged end panels, 1457-EMI Series |
| Hammond short description | 1457U 160MM ENCL CLEAR EMI V1 |
| Size L x W x H | 6.3 x 7.52 x 2.68 in (160 x 191 x 68 mm) |
| Shipping weight | 1.5 lb (0.68 kg) |
| Material | Aluminum (Extruded) |
| Color | Clear (Anodize) |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | PC Board Enclosures |
| Max. P.C. Board Length (mm) | 159 |
| Max. P.C. Board Width (mm) | 185 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1457U1601E. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1457U1601E · Hammond 1457-EMI series specification sheet (PDF).
