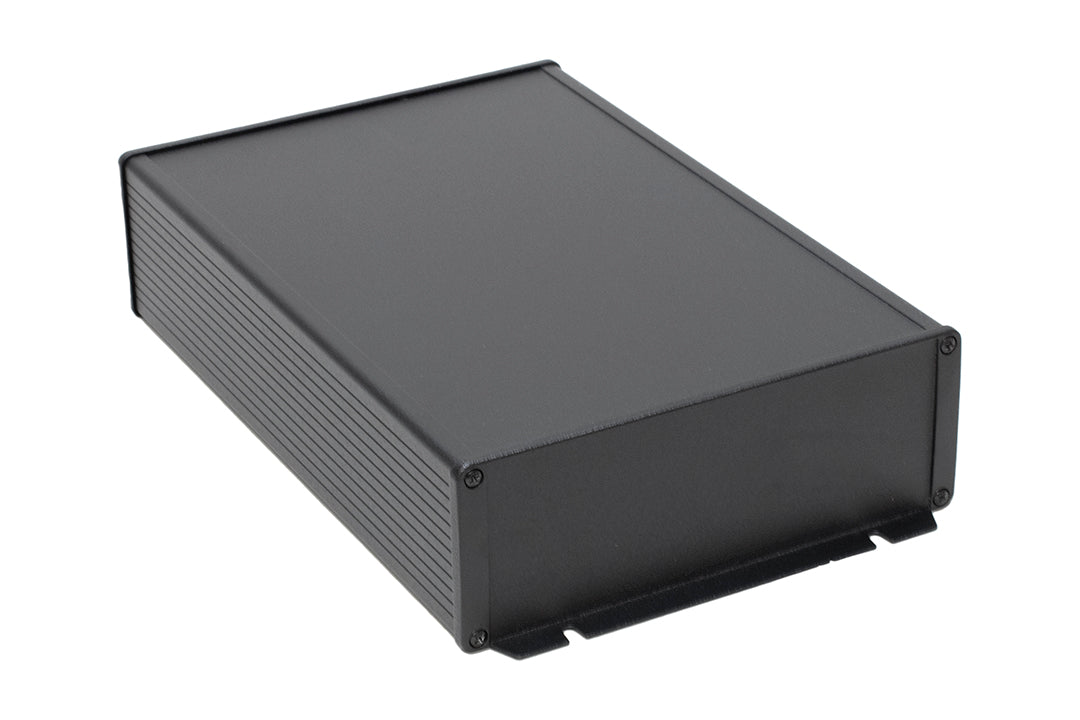

1457U2802EBK Hammond EMI/RFI Shielded Extruded Aluminum Enclosure, 11.02 x 7.52 x 2.68 in, IP54, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1457U2802EBK is listed by Hammond as enclosure, extruded aluminum, 7.52 x 2.68 x 11.02, flanged end panels, 1457-EMI Series, from the EMI/RFI Shielded Extruded Aluminum Enclosures (1457-EMI Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1457U2802EBK specifications
| Catalog number | 1457U2802EBK |
| Manufacturer | Hammond Manufacturing |
| Series | EMI/RFI Shielded Extruded Aluminum Enclosures (1457-EMI Series) |
| Hammond description | Enclosure, extruded aluminum, 7.52 x 2.68 x 11.02, flanged end panels, 1457-EMI Series |
| Hammond short description | 1457U 280MM ENCL BK3 EMI V2 |
| Size L x W x H | 11.02 x 7.52 x 2.68 in (280 x 191 x 68 mm) |
| Shipping weight | 1.6 lb (0.73 kg) |
| Material | Aluminum (Extruded) |
| Color | Black |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | PC Board Enclosures |
| Max. P.C. Board Length (mm) | 279 |
| Max. P.C. Board Width (mm) | 185 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1457U2802EBK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1457U2802EBK · Hammond 1457-EMI series specification sheet (PDF).
