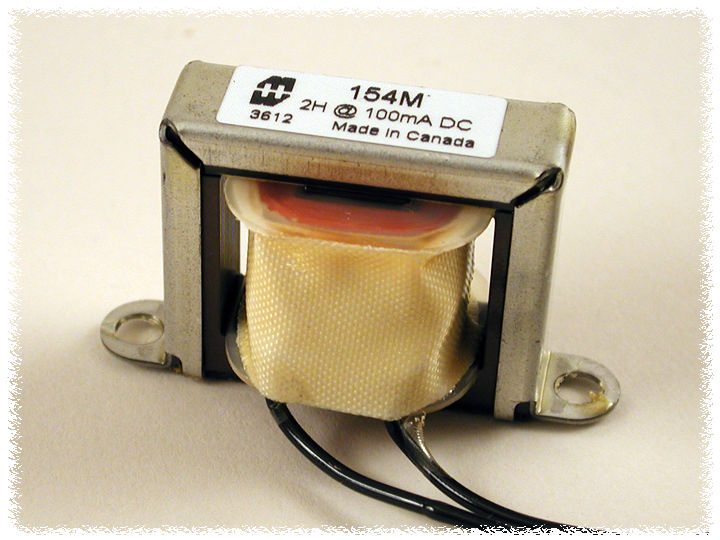

154M Hammond DC Reactor
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 154M is listed by Hammond as DC reactor, filter choke, open channel mount, inductance 2H, DC current 100 ma., from the D.C. Reactors or filter chokes (153-159 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
154M specifications
| Catalog number | 154M |
| Manufacturer | Hammond Manufacturing |
| Series | D.C. Reactors or filter chokes (153-159 Series) |
| Hammond description | DC reactor, filter choke, open channel mount, inductance 2H, DC current 100 ma. |
| Hammond short description | CHOKE |
| Shipping weight | 0.25 lb (0.11 kg) |
| Inductance +/- 15% | 2H |
| D.C. Current | 100 ma. |
| Resistance +/- 15% (Ohms) | 175 |
| Maximum Operating Volts (D.C) | 300 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 154M. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 154M · Hammond 153-159 series specification sheet (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
