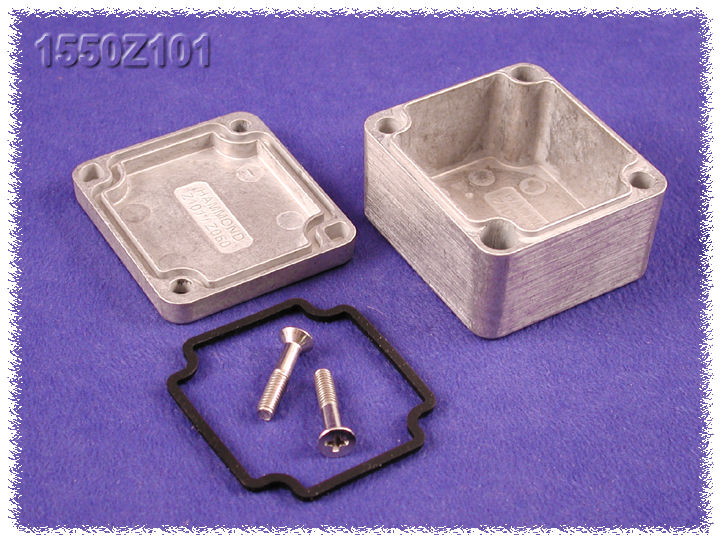

1550Z101 Hammond Watertight Diecast Aluminum Enclosure, 1.98 x 1.78 x 1.2 in, NEMA 4, 4X, 12 & 13, Natural Aluminum
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1550Z101 is listed by Hammond as watertight diecast enclosure, from the Watertight Diecast Aluminum Enclosures (1550Z Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1550Z101 specifications
| Catalog number | 1550Z101 |
| Manufacturer | Hammond Manufacturing |
| Series | Watertight Diecast Aluminum Enclosures (1550Z Series) |
| Hammond description | watertight diecast enclosure |
| Hammond short description | DIECAST BOX 1550Z SERIES |
| Size L x W x H | 1.98 x 1.78 x 1.2 in (50 x 45 x 30 mm) |
| Shipping weight | 0.15 lb (0.07 kg) |
| Material | Aluminum (Die-Cast Alloy) |
| Color | Natural Aluminum |
| IP Rating | IP68 |
| Product Category | Enclosures |
| Type | Thick wall, water-tight |
| NEMA Rating | 4, 4X, 12 & 13 |
| Max. P.C. Board Length (mm) | 38.61 |
| Max. P.C. Board Width (mm) | 43.31 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1550Z101. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1550Z101 · Hammond 1550Z series specification sheet (PDF).
